Product Summary

The SE2594L is a complete 802.11a/b/g/n WLAN RF front-end module providing all the functionality of the power amplifiers, filtering, power detector, T/R switch, diplexers and associated matching. The SE2594L provides a complete 2.4 GHz and 5 GHz WLAN RF solution from the output of the transceiver to the antenna in an ultra compact form factor.

Parametrics

SE2594L absolute maximum ratings: (1)VCC Supply Voltage: -0.3 to 4.0 V; (2)PU ENa, ENg: -0.3 to 4.0 V; (3)TXRF Ta, Tg, ANT terminated in 6:1 load or better: 12.0 dBm; (4)TA Operating Temperature Range: -40 to 85℃; (5)TSTG Storage Temperature Range: -40 to 150℃.

Features

SE2594L features: (1)All RF ports matched to 50Ω; (2)Integrated 2.4 GHz PA, 5 GHz PA, TX Filter, T/R switches and diplexers; (3)Integrated Power Detector for each TX Chain; (4)21 dBm O/P Power, 802.11b, 11 Mbps, ACPR = 35 dBc; (5)18 dBm @ 3.0 % EVM, 802.11g, 54 Mbits; (6)16.5 dBm @ 3.0 % EVM, 802.11a, 54 Mbits; (7)Single supply voltage: 3.3 V ± 10 %; (8)Lead free, Halogen free, RoHS compliant, MSL 3; (9)5mm × 5mm × 0.9mm, QFN Package.

Diagrams

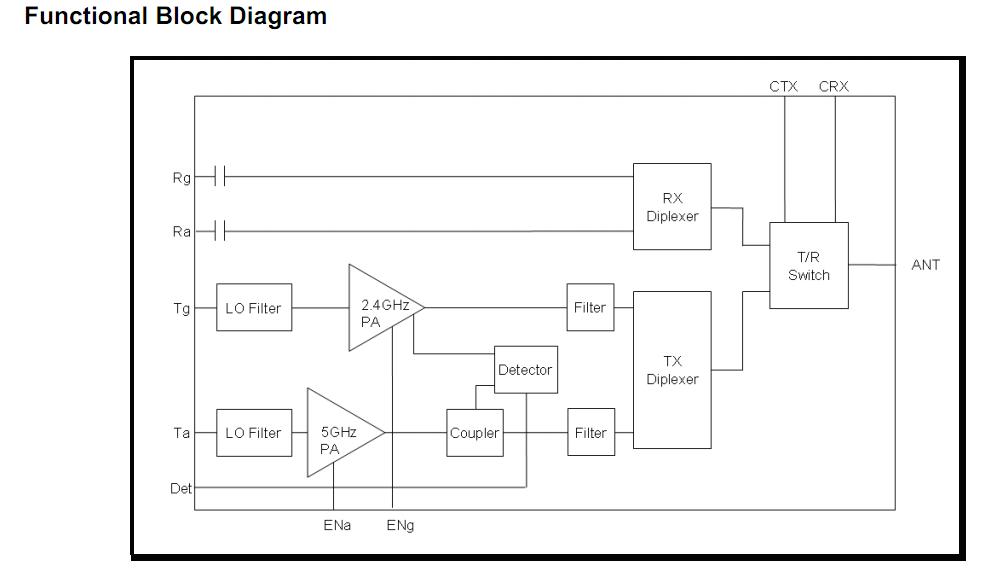

SE2594L block diagram
