Product Summary

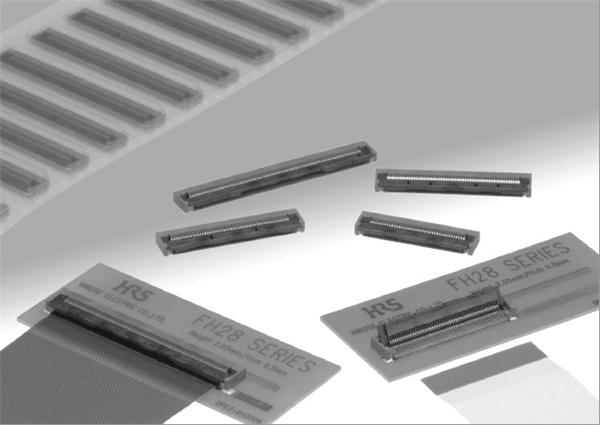

The FH28-50S-0.5SH(05) is a Flexible Flat Cable ZIF Connector. Continuing market trends demand higher contact count connectors while maintaining high electrical/mechanical reliability, exact FPC/FFC positioning and durability.

Parametrics

FH28-50S-0.5SH(05) absolute maximum ratings: (1)Rated current: 0.5A DC; (2)Operating temperature range-40 to +85℃; (3)Storage temperature range: -10 to +50℃.

Features

FH28-50S-0.5SH(05) features: (1)Precise FFC/FPC positionining; (2)Rotating actuator; (3)Strong FFC / FPC retention force; (4)Accepts standard FPC/FFC thickness; (5)Conductive traces on the PCB can run under the connector; (6)Board placement with automatic equipment; (7)Halogen-free; (8)Optional 500 piece reel packaging.

Diagrams

FH28-50S-0.5SH(05) block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FH28-50S-0.5SH(05)
FH28-50S-0.5SH(05)

Hirose Connector

FFC / FPC Connectors 50POS 0.5MM SMT GOLD

Data Sheet

0-1: $1.33
1-10: $1.10
10-50: $0.92
50-100: $0.82
