Product Summary

The HEF4049BT is a Hex inverting buffer. The HEF4049BT provides six inverting buffers with high current output capability suitable for driving TTL or high capacitive loads. Since input voltages in excess of the supply voltage are permitted, the buffers may also be used to convert logic levels of up to 15 V to standard TTL levels. Its guaranteed fan-out into common bipolar logic elements is shown in Table 3. The applications of the HEF4049BT are LOCMOS (Local Oxidation CMOS) to DTL/TTL converter, HIGH sink current for driving two TTL loads and HIGH-to-LOW level logic conversion.

Parametrics

HEF4049BT absolute maximum ratings: (1)VDD supply voltage: -0.5 to +18 V; (2)IIK input clamping current: - 10 mA; (3)VI input voltage: -0.5 to VDD + 0.5 V; (4)IOK output clamping current: - 10 mA; (5)II/O input/output current: 10 mA; (6)IDD supply current: 50 mA; (7)Tstg storage temperature: -65 to +150℃; (8)Tamb ambient temperature: -40 to +85℃; (9)Ptot total power dissipation Tamb: 100 mW.

Features

HEF4049BT features: (1)Accepts input voltages in excess of the supply voltage; (2)Fully static operation; (3)5 V, 10 V, and 15 V parametric ratings; (4)Standardized symmetrical output characteristics; (5)Specified from -40 to +85℃; (6)Complies with JEDEC standard JESD 13-B.

Diagrams

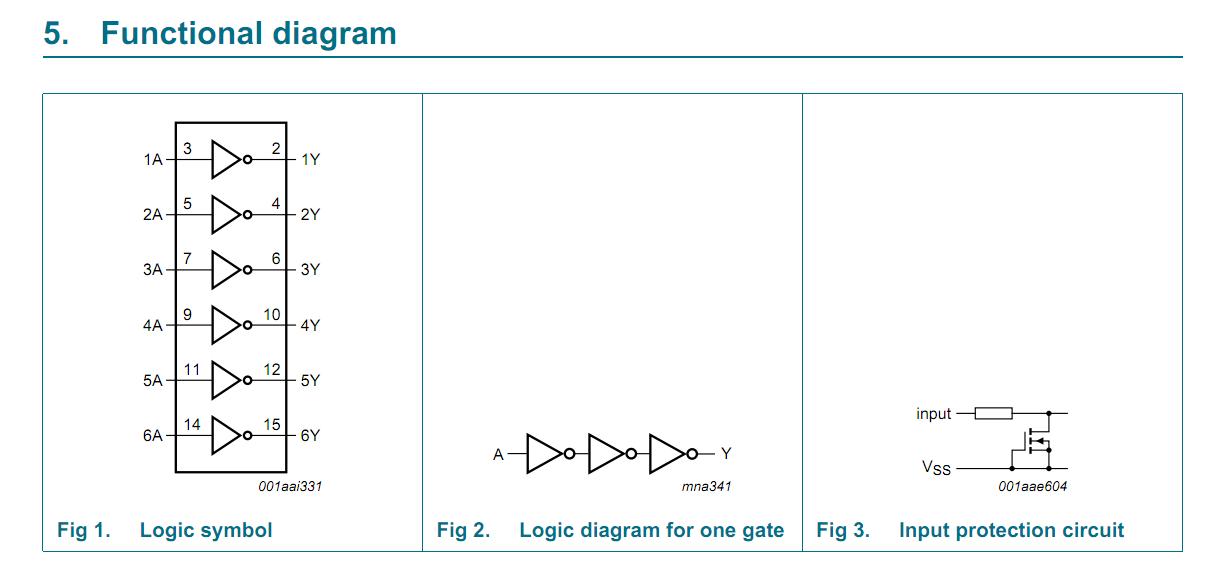

HEF4049BT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HEF4049BT,652
HEF4049BT,652

NXP Semiconductors

Buffers & Line Drivers BUFFER HEX INVERTING

Data Sheet

0-1: $0.10
1-25: $0.10
25-100: $0.09
100-250: $0.09
HEF4049BT,653
HEF4049BT,653

NXP Semiconductors

Buffers & Line Drivers HEX INVERTING BUF

Data Sheet

0-1: $0.19
1-25: $0.16
25-100: $0.11
100-250: $0.09
HEF4049BTD
HEF4049BTD

NXP Semiconductors

Buffers & Line Drivers BUFFER HEX INVERTING

Data Sheet

Negotiable
