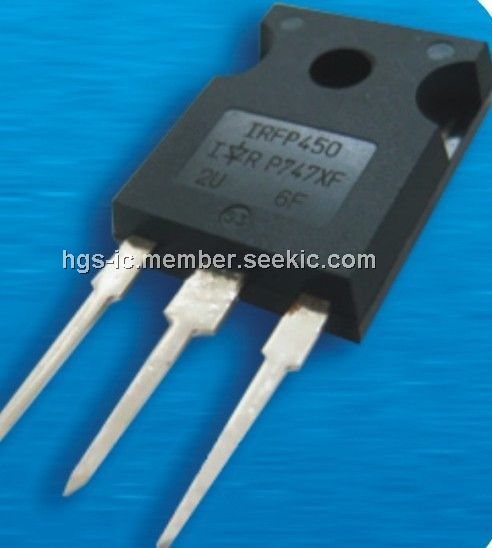

IRFP450

IRFP450, HEXFET POWER MOSFET, TO-247AC, 500V, 14 Amp, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~1.00

PartNumber:: IRFP450

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. handy chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-13

From Other Seller

Part Number:IRFP450
US $0.60 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFP450 is a HEXFET Power MOSFET. The IRFP450 provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because its isolated mounting hole. The IRFP450 also provides greater creepage distances between pins to meet the requirements of most safety specifications.

Parametrics

IRFP450 absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 14 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 8.7 A; (3)Pulsed Drain Current, IDM: 56 A; (4)PD @TC = 25℃, Power Dissipation: 190 W; (5)Linear Derating Factor: 1.5 W/℃; (6)Gate-to-Source Voltage, VGS: ±20 V; (7)Single Pulse Avalanche Energyb, EAS: 760 mJ; (8)IAR Avalanche current: 8.7 A; (9)Repetitive Avalanche Energy, EAR: 19 mJ; (10)Peak Diode Recovery, dv/dt: 3.5V/ns; (11)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to 150℃; (12)Soldering Temperature for 10 seconds: 300℃; (13)Mounting Torque, 6-32 or M3 Screw: 10lb·in (1.1N·m).

Features

IRFP450 features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Isolated Central Mounting Hole; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements; (7)Lead (Pb)-free Available.
