Product Summary
The M30262F8GP is a single-chip microcomputer which is built using the high-performance silicon gate CMOS process and is packaged in a 48-pin plastic molded QFP. The single-chip microcomputer operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, the M30262F8GP is capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes the M30262F8GP suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/logic operations. The applications of the M30262F8GP are: Audio, cameras, office/communications/portable/industrial equipment, etc.
Parametrics
M30262F8GP absolute maximum ratings: (1)Supply voltage: -0.3 to 6.5V; (2)Analog supply voltage: -0.3 to 6.5V; (3)Power dissipation: 300mW; (4)Operating ambient temperature: -20 to 85℃; (5)Storage temperature: -65 to 150℃.
Features
M30262F8GP features: (1)LOW output voltage: 0.5V; (2)Pull-up resistance: 50 to 500kΩ; (3)RAM retention voltage: 2.0V.

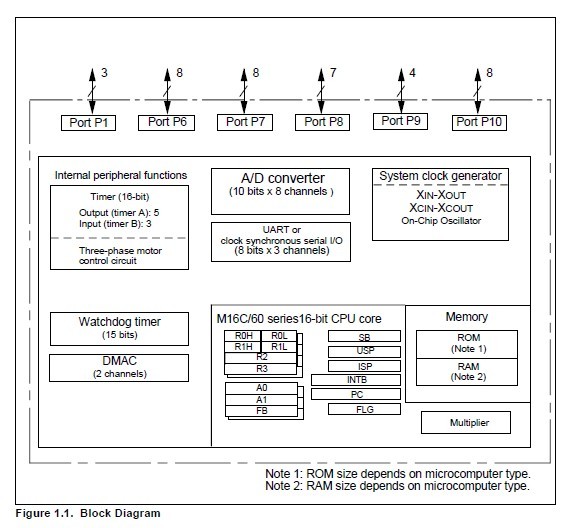

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M30262F8GP#D3 |
|
IC M16C MCU FLASH 64K 48-LQFP |
Data Sheet |
|
|
||||||
|
M30262F8GP#D5 |
|
IC M16C MCU FLASH 64K 48LQFP |
Data Sheet |
Negotiable |
|
||||||
|
M30262F8GP#U3 |
|
IC M16C/TINY MCU FLASH 48LQFP |
Data Sheet |
|
|
||||||
|
M30262F8GP#U5 |
|
IC M16C/TINY MCU FLASH 48LQFP |
Data Sheet |
Negotiable |
|
||||||
 |
M30262F8GP#D7 |
Renesas Technology America |
IC M16C MCU FLASH 64K 48LQFP |
Data Sheet |
Negotiable |
|
||||||
|
M30262F8GP#D9 |
Renesas Technology America |
IC M16C MCU FLASH 64K 48LQFP |
Data Sheet |
Negotiable |
|
||||||
|
M30262F8GP#U9 |
|
IC M16C/TINY MCU FLASH 48LQFP |
Data Sheet |
|
|
||||||
|
M30262F8GP#U7 |
|
IC M16C/TINY MCU FLASH 48LQFP |
Data Sheet |
Negotiable |
|
||||||
