Product Summary

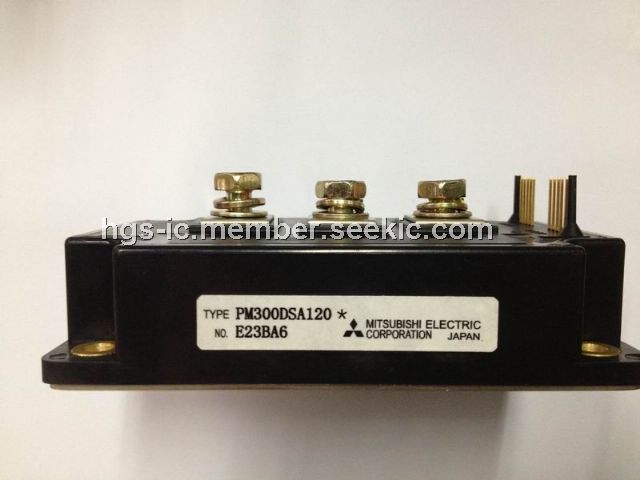

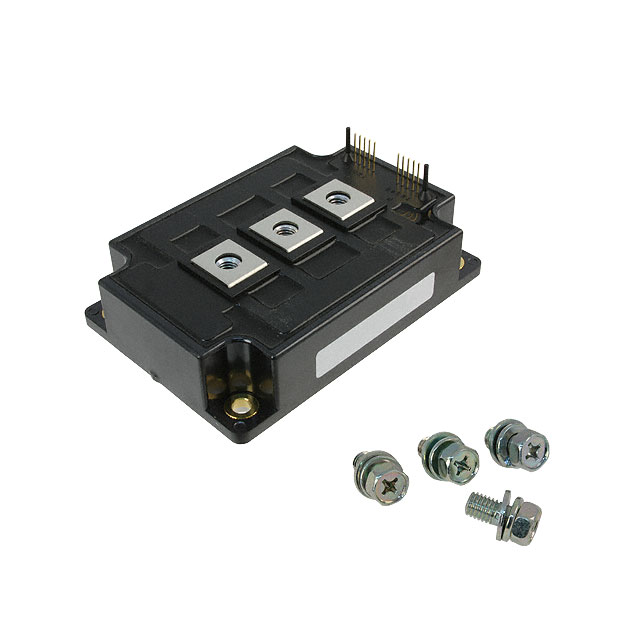

The PM300DSA120 is an isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuit provide optimum gate drive and protection for the IGBT and free-wheel diode power device. The applications of the PM300DSA120 include inverters, UPS, motion/servo control and power supplies.

Parametrics

PM300DSA120 absolute maximum ratings: (1)Power device junction temperature,Tj: -20 to 150 ℃; (2)Storage temperature,Tstg: -40 to 125 ℃; (3)Case operating temperature, TC: -20 to 100 ℃; (4)Mounting torque, M6 mounting screws: 3.92~5.88 N · m; (5)Mounting torque, M8 main terminal screws: 8.83~10.8 N · m; (6)Module weight (typical): 910 Grams; (7)Supply voltage protected by OC and SC (VD = 13.5 - 16.5V, inverter part), VCC(prot.): 800 Volts; (8)Isolation voltage (main terminal to baseplate, AC 1 min.), Viso: 2500 Vrms.

Features

PM300DSA120 features: (1)Complete output power circuit; (2)Gate drive circuit; (3)Protection logic: short circuit, over current, over temperature, under voltage.

Diagrams

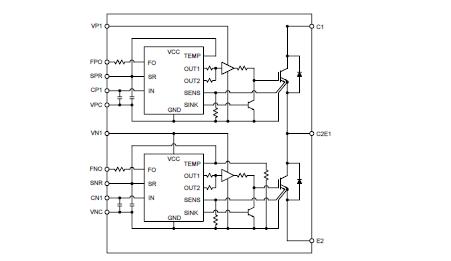

PM300DSA120 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PM300DSA120
PM300DSA120


MOD IPM DUAL 1200V 300A

Data Sheet

Negotiable
