Product Summary

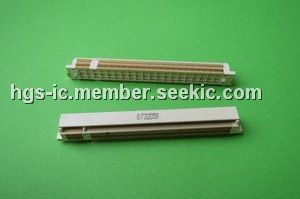

The AS0B326-S78N-7F is a MXM Socket.

Parametrics

AS0B326-S78N-7F absolute maximum ratings: (1)Voltage Rating: 50V; (2)Current Rating: 0.5A; (3)Contact Resistance: 40mΩ max; (4)Dielectric Withstanding Voltage: 500V AC/1 min; (5)Insulation Resistance: 250MΩ.

Features

AS0B326-S78N-7F features: (1)Housing: Thermoplastic, UL 94V-0 rated in Ivory Color; (2)Contact: Copper alloy; (3)Metal Tab: Copper alloy; (4)Operating Temperature: -40℃ to +85℃.

Diagrams

<IMG alt="AS0B326-S78N-7F drawing" src="http://www.seekic.com/uploadfile/ic-mfg/20121021222311745.jpg" border=0>
