DS1868-10

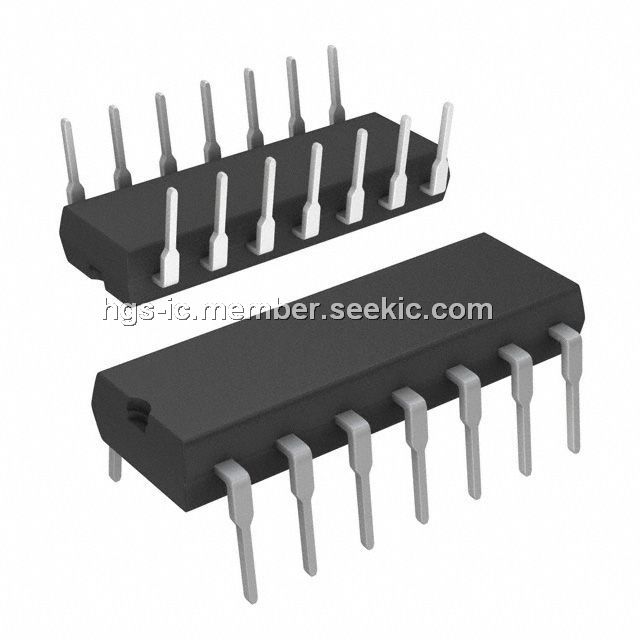

Dual Digital Potentiometer Chip, DIP, -1.0V to +7.0V, DS1868-10, Maxim

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~5.00

PartNumber:: DS1868-10

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. handy chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-13

From Other Seller

Part Number:DS1868-10
US $3.00 - 5.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

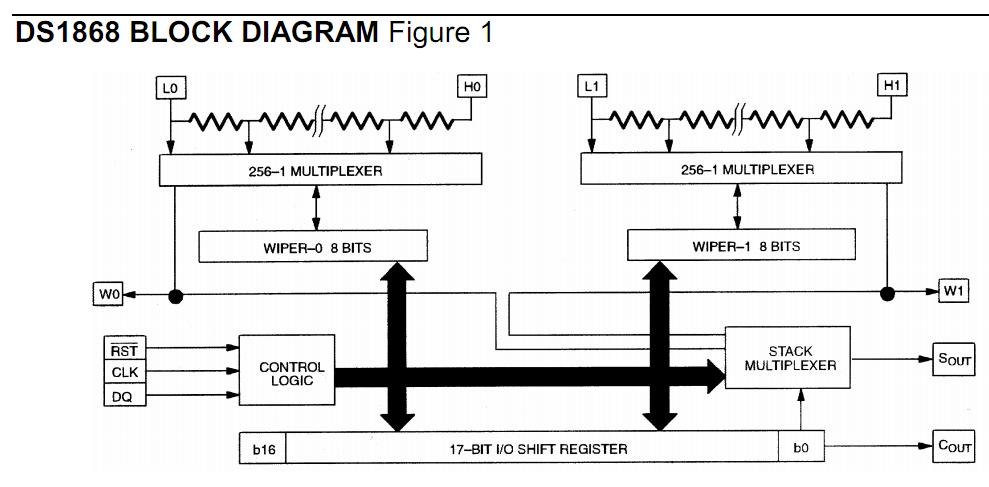

The DS1868-10 is a Dual Digital Potentiometer Chip. It consists of two digitally controlled solid-state potentiometers. The DS1868-10 is composed of 256 resistive sections. Between each resistive section and both ends of the potentiometer are tap points which are accessible to the wiper. The position of the wiper on the resistor array is set by an 8-bit value that controls which tap point is connected to the wiper output. Communication and control of the device is accomplished via a 3-wire serial port interface. This interface DS1868-10 allows the device wiper position to be read or written.

Parametrics

DS1868-10 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground (VB=GND): -1.0V to +7.0V; (2)Voltage on Any Pin when VB=-3.3V: -3.3V to +4.7V; (3)Operating Temperature: -40 to +85℃; (4)Storage Temperature: -55 to +125℃; (5)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1868-10 features: (1)Ultra-lowpower consumption, quiet, pumpless design; (2)Two digitally controlled, 256-position potentiometers; (3)Serial port provides means for setting and reading both potentiometers; (4)Resistors can be connected in series to provide increased total resistance; (5)20-pin TSSOP, 16-pin SOIC, and 14-pin DIP packages are available.; (6)Resistive elements are temperature compensated to ±0.3 LSB relative linearity; (7)Standard resistance values:10 kW; (8)+5V or ±3V operation; (9)Operating Temperature Range: Industrial: -40 to 85℃.
