Product Summary

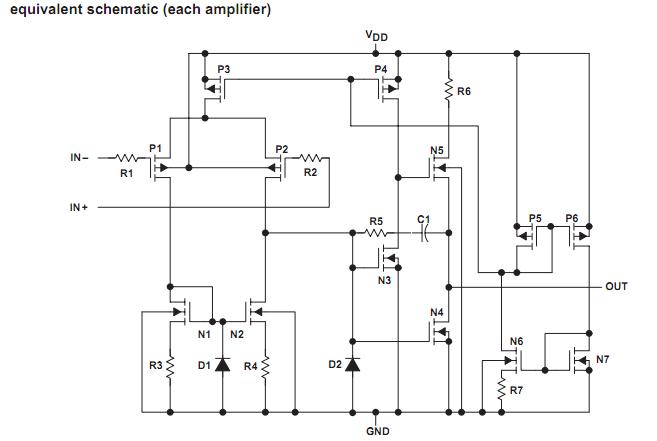

The 2322I is an operational amplifier that has been specifically designed for use in low-voltage single-supply applications. This amplifier 2322I is especially well suited to ultra-low-power systems that require devices to consume the absolute minimum of supply currents. Each amplifier is fully functional down to a minimum supply voltage of 2 V, is fully characterized, tested, and specified at both 3-V and 5-V power supplies. The common-mode input voltage range includes the negative rail and extends to within 1 V of the positive rail.
Parametrics
2322I absolute maximum ratings: (1)Supply voltage, VDD: 8 V; (2)Differential input voltage, VID: VDD±; (3)Input voltage range, VI (any input): –0.3 V to VDD; (4)Input current, II: ±5 mA; (5)Output current, IO: ±30 mA; (6)Operating free-air temperature range, TA: –40 to 85℃; (7)Storage temperature range: –65 to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
2322I features: (1)Wide Range of Supply Voltages Over Specified Temperature Range: TA = –40 to 85℃, 2 V to 8 V; (2)Fully Characterized at 3 V and 5 V; (3)Single-Supply Operation; (4)Common-Mode Input Voltage Range Extends Below the Negative Rail and up to VDD –1 V at TA = 25℃; (5)Output Voltage Range Includes Negative Rail; (6)High Input Impedance: 1012Ω Typical; (7)ESD-Protection Circuitry; (8)Designed-In Latch-Up Immunity.
Diagrams
 |

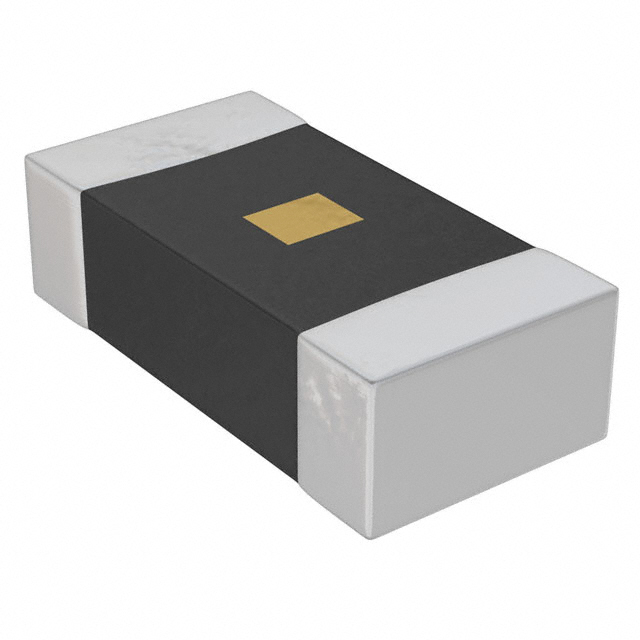

 2322 615 13474 |
|
THERMISTOR 470K OHM NTC SMT 0805 |
Data Sheet |
Negotiable |
|
||||
|
2322 615 13681 |
|
THERMISTOR 680 OHM NTC SMT 0805 |
Data Sheet |
Negotiable |
|
||||
 |

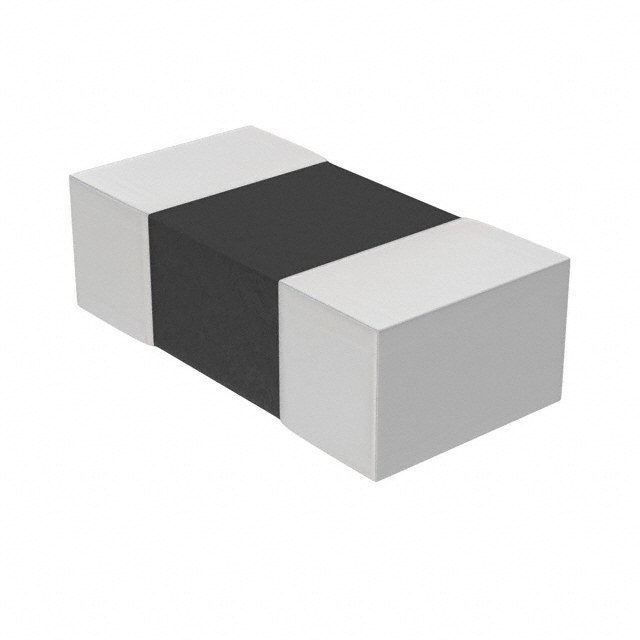

2322 615 23103 |
|
THERMISTOR 10K OHM NTC SMT 0603 |
Data Sheet |
Negotiable |
|
||||
|
2322 615 23104 |
|
THERMISTOR 100K OHM NTC SMT 0603 |
Data Sheet |
Negotiable |
|
||||
|
2322 615 23472 |
|
THERMISTOR 4.7K OHM NTC SMT 0603 |
Data Sheet |
Negotiable |
|
||||
|
2322 615 13101 |
|
THERMISTOR 100 OHM NTC SMT 0805 |
Data Sheet |
Negotiable |
|
||||
