Product Summary

The SI9976DY is an integrated driver for an n-channel MOSFET half-bridge. Schmitt trigger inputs provide logic signal compatibility and hysteresis for increased noise immunity. An internal low-voltage regulator allows the device to be powered directly from a system supply of 20 to 40 V. Both half-bridge n-channel gates are driven directly with low-impedance outputs. Addition of one external capacitor allows an internal circuit to level shift both the power supply and logic signal for the half-bridge high-side n-channel gate drive. The applications of the SI9976DY are Power Supplies, Motor Drives, Office Automation, Computer Peripherals, Industrial Controllers, Robotics and Medical Equipment.

Parametrics

SI9976DY absolute maximum ratings: (1)Voltage on IN, EN (pins 5, 6) with respect to ground: -0.3 to VDD +0.3 V; (2)Voltage on VCC (pin 7): -0.3 to +18 V; (3)Voltage on V+, S1 (pins 3, 13): -0.3 to +50 V; (4)Voltage on CAP, G1a (pins 2, 12): -0.3 to +60 V; (5)Peak Output Current: 0.5 A; (6)Operating Temperature (TA): -40 to 85℃; (7)Storage Temperature: -50 to 150℃; (8)Maximum Junction Temperature (TJ): 125℃; (9)Power Dissipation: 1 W.

Features

SI9976DY features: (1)Single Input for High-Side and Low-Side MOSFETs; (2)20- to 40-V Supply; (3)Static (dc) Operation; (4)Cross-Conduction Protected; (5)Undervoltage Lockout; (6)ESD and Short Circuit Protected; (7)Fault Feedback.

Diagrams

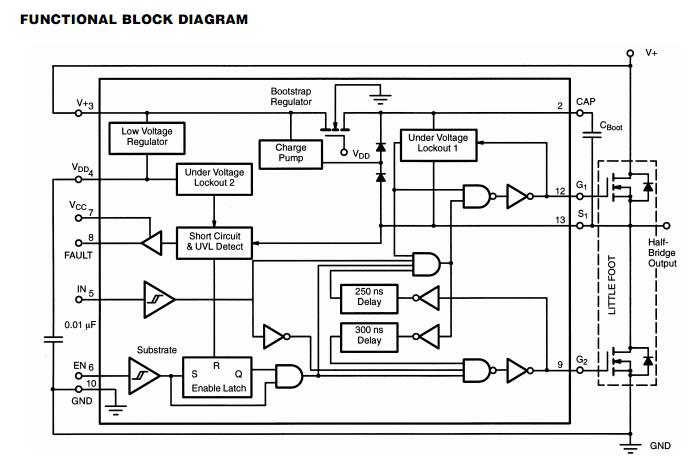

SI9976DY block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SI9976DY
SI9976DY

Vishay/Siliconix

Power Driver ICs Half Bridge Driver

Data Sheet

0-335: $1.66
335-500: $1.61
500-1000: $1.46
SI9976DY-E3
SI9976DY-E3

Vishay/Siliconix

Power Driver ICs H-Bridge MOSFET

Data Sheet

0-340: $1.28
340-500: $1.24
500-1000: $1.12
SI9976DY-T1
SI9976DY-T1

Vishay/Siliconix

Power Driver ICs Half Bridge Driver

Data Sheet

0-1690: $1.49
1690-2500: $1.38
SI9976DY-T1-E3
SI9976DY-T1-E3

Vishay/Siliconix

Power Driver ICs DRVR 0.5A Dual Hi/Lo Side Half Brdg

Data Sheet

0-1575: $1.24
1575-2500: $1.13
