Product Summary
The ATMEGA16L-8PU is an 8-bit microcontroller with 16k bytes in-syustem programmable flash. The ATMEGA16L-8PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA16L-8PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA16L-8PU absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Voltage on any Pin except RESET; (3)with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0mA PDIP and; (8)400.0mA TQFP/MLF Operating Temperature: -55 to +125℃.
Features
ATMEGA16L-8PU features: (1)High-performance, Low-power AVR8-bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Peripheral Features; (6)Special Microcontroller Features; (7)I/O and Packages; (8)Operating Voltages. 2.7 - 5.5V; (9)Speed Grades, 0 - 8 MHz for ATmega16L, 0 - 16 MHz for ATmega16.

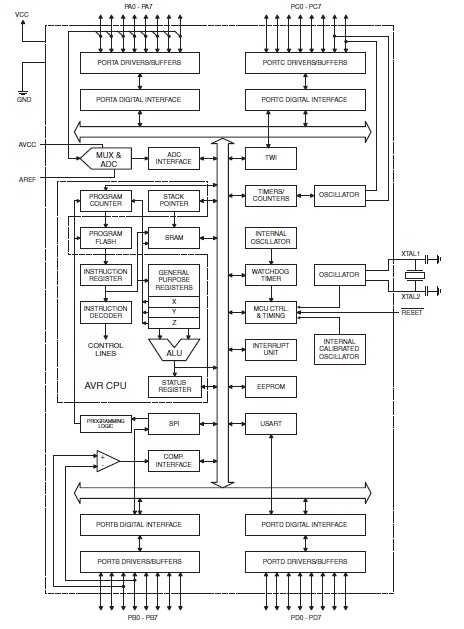

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ATmega16L-8PU |
Atmel |
8-bit Microcontrollers (MCU) 16kB Flash 0.5kB EEPROM 32 I/O Pins |
Data Sheet |
|
|
|||||||||||||
