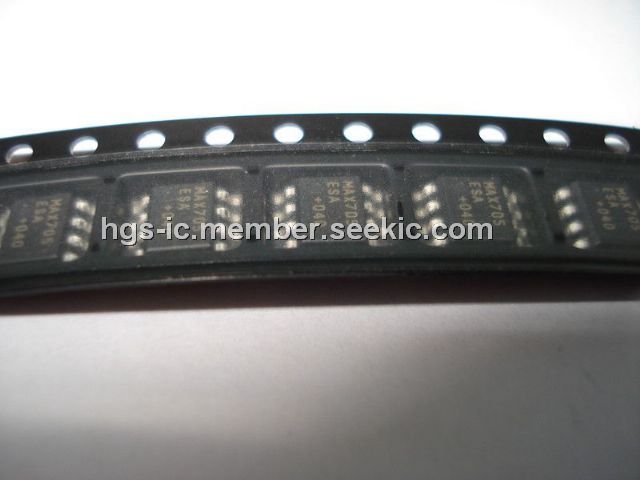

MAX705ESA

microprocessor supervisory circuit, 8-DIP, 4.65V, 20mA, 727mW, MAX705ESA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: MAX705ESA

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. handy chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-20

From Other Seller

Part Number:MAX705ESA
US $0.50 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

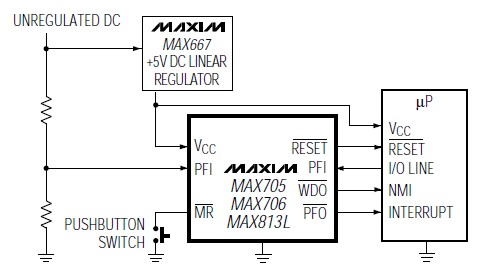

The MAX705ESA is a microprocessor (μP) supervisory circuit. It reduces the complexity and number of components required to monitor power-supply and battery functions in μP systems. The MAX705ESA significantly improves system reliability and accuracy compared to separate ICs or discrete components. The applications of the MAX705ESA include: Computers; Controllers; Intelligent Instruments; Automotive Systems; Critical μP Power Monitoring.

Parametrics

MAX705ESA absolute maximum ratings: (1)Terminal Voltage (with respect to GND)VCC: -0.3V to 6.0V; All Other Inputs: -0.3V to (VCC + 0.3V); (2)Input Current VCC: 20mA; GND: 20mA; (3)Output Current (all outputs): 20mA; (4)Continuous Power Dissipation; (5)Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; SO (derate 5.88mW/℃ above +70℃): 471mW; μMAX (derate 4.10mW/℃ above +70℃): 330mW; CERDIP (derate 8.00mW/℃ above +70℃): 640mW; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX705ESA features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)Precision Supply-Voltage Monitor: 4.65V; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible Manual-Reset Input; (6)Independent Watchdog Timer—1.6sec Timeout; (7)Voltage Monitor for Power-Fail or Low-Battery Warning.
