Product Summary

The 13003 is an NPN silicon transistor. It is sutiable for switching regulator application, high voltage and high speed switching application.

Parametrics

13003 absolute maximum ratings: (1)collector base voltage, VCBO: 700V; (2)collector emitter voltage, VCEO: 400V; (3)emitter base voltage, VEBO: 9V; (4)base current, IB: 0.75A; (5)collector power dissipation, PC: 20W; (6)junction temperature, Tj: 150℃; (7)storage temperature range, Tstg: -65 to 150℃.

Features

13003 features: (1)excellent switching times; (2)high collector voltage: VCBO=700V.

Diagrams

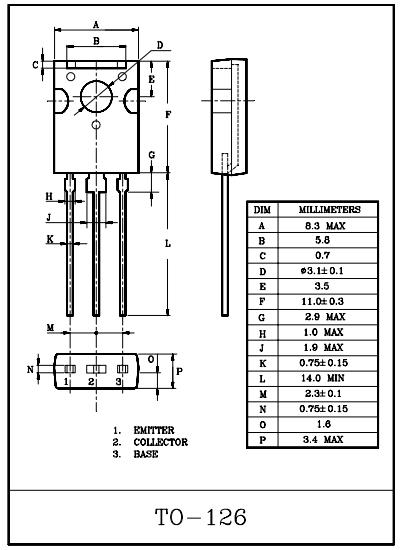

13003 dimensions
