Product Summary
The lbss84l is a miniature surface mount MOSFET. It reduces power loss conserve energy, making this device ideal for use in small power management circuitry. Typical applications of the lbss84l are dc–dc converters, load switching, power management in portable and battery–powered products such as computers, printers, cellular and cordless telephones.
Parametrics
lbss84l absolute maximum ratings: (1)Drain–to–Source Voltage VDSS: 50 Vdc; (2)Gate–to–Source Voltage – Continuous VGS: ± 20 Vdc; (3)Drain Current, ID: 130mA; (4)Total Power Dissipation PD: 225 mW; (5)Operating and Storage Temperature Range TJ, Tstg: – 55 to; (6)150℃.
Features
lbss84l features: (1)Energy Efficient; (2)Miniature SOT–23 Surface Mount Package Saves Board Space.

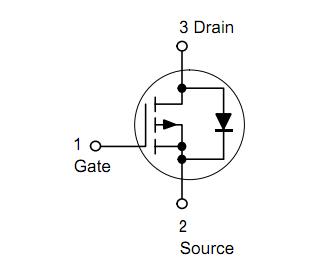

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

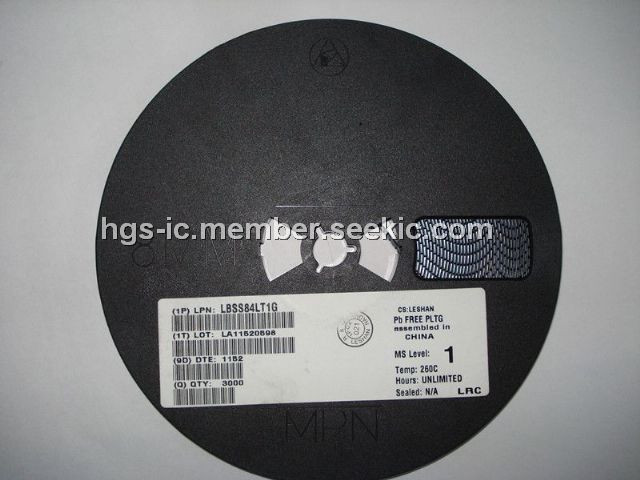

 LBSS84LT1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LBSS84LT1G |
Other |
|
Data Sheet |
Negotiable |
|
||||
