Product Summary

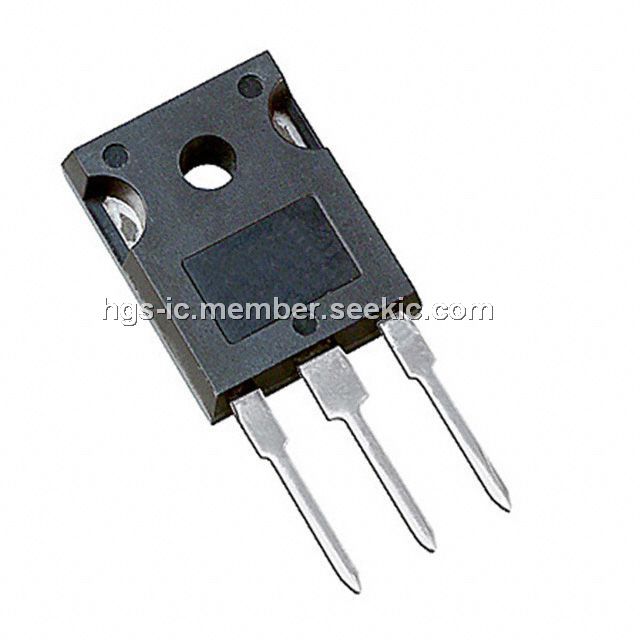

The IRFP250NPBF is a HEXFET Power MOSFET. It utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for. The IRFP250NPBF provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRFP250NPBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 30 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 21 A; (3)IDM Pulsed Drain Current: 120 A; (4)PD @TC = 25℃ Power Dissipation: 214 W; (5)Linear Derating Factor: 1.4 W/℃; (6)VGS Gate-to-Source Voltage: ±20 V; (7)EAS Single Pulse Avalanche Energy: 315mJ; (8)IAR Avalanche Current: 30A; (9)EAR Repetitive Avalanche Energy: 21mJ; (10)dv/dt Peak Diode Recovery dv/dt: 8.6 V/ns; (11)TJ TSTG Operating Junction and Storage Temperature Range: -55℃ to +175℃.

Features

IRFP250NPBF features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5) Fully Avalanche Rated; (6) Ease of Paralleling; (7) Simple Drive Requirements; (8) Lead-Free.

Diagrams

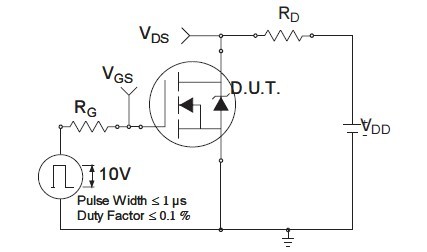

IRFP250NPBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFP250NPBF
IRFP250NPBF

International Rectifier

MOSFET MOSFT 200V 30A 75mOhm 82nCAC

Data Sheet

0-1: $1.68
1-25: $1.09
25-100: $0.79
100-250: $0.74
