Product Summary

The SAK-C164CI-LM is a 16-Bit Single-Chip Microcontroller.

Parametrics

SAK-C164CI-LM absolute maximum ratings: (1)Storage temperature TST: -65 to 150 ℃; (2)Junction temperature TJ: -40 to 150 ℃; (3)Voltage on VDD pins with respect to ground (VSS) VDD: -0.5 to 6.5 V; (4)Voltage on any pin with respect to ground (VSS) VIN: -0.5 to VDD + 0.5 V; (5)Input current on any pin during overload condition: -10 to 10 mA; (6)Absolute sum of all input currents during overload condition: |100| mA; (7)Power dissipation PDISS: 1.5 W.

Features

SAK-C164CI-LM features: (1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)16-Priority-Level Interrupt System with 32 Sources, Sample-Rate down to 40 ns; (3)8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC); (4)Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5), via prescaler or via direct clock input; (5)On-Chip Memory Modules; (6)On-Chip Peripheral Modules; (7)Up to 4 MBytes External Address Space for Code and Data; (8)Idle, Sleep, and Power Down Modes with Flexible Power Management; (9)Programmable Watchdog Timer and Oscillator Watchdog; (10)Up to 59 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis.

Diagrams

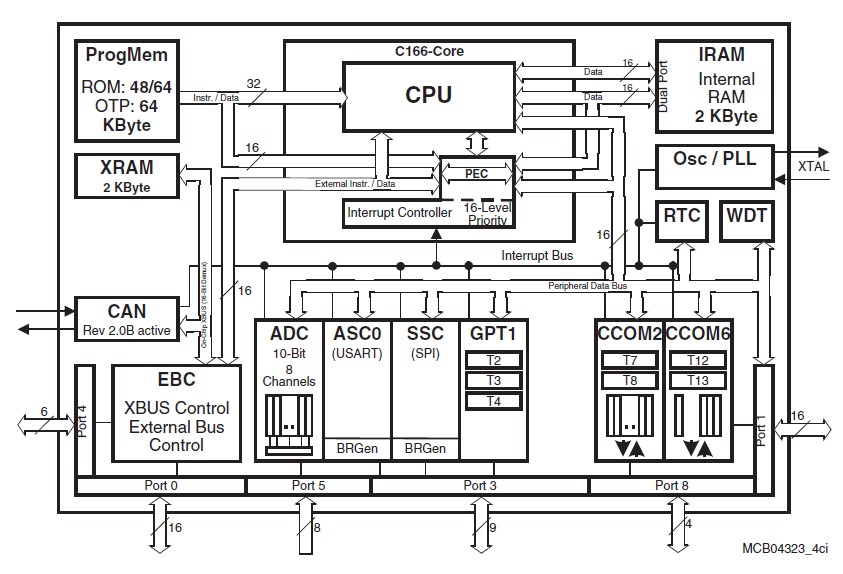

SAK-C164CI-LM diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SAK-C164CI-LM CA+
SAK-C164CI-LM CA+

Infineon Technologies

16-bit Microcontrollers (MCU) 16-Bit Single-Chip 5V 20MHz ROM less

Data Sheet

Negotiable
