Product Summary

The PE-68678NL is a transformer.

Parametrics

PE-68678NL absolute maximum ratings: (1)Size-Length 12.8 mm; (2)Size-Width 9.53 mm; (3)Lead-Free Status Lead Free; (4)Packaging Tube; (5)Size-Height 6.22 mm; (6)Mounting Type Surface Mount; (7)RoHS Compliant.

Features

PE-68678NL features: (1)RoHS-6 peak reflow temperature rating: 245℃; (2)Dual SMT package contains transmit and receive transformers; (3)Models matched to leading transceiver ICs; (4)Isolation voltage: 1500 Vrms; (5)UL recognized.

Diagrams

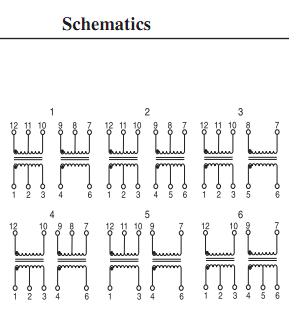

PE-68678NL schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PE-68678NL
PE-68678NL

Pulse

Transformers Audio & Signal T1/CEPT/ISDN-PRI TRANSFORMER

Data Sheet

0-1: $2.59
1-10: $1.73
10-100: $1.40
100-500: $1.24
PE-68678NLT
PE-68678NLT

Pulse

Transformers Audio & Signal T1/CEPT/ISDN-PRI Transformer

Data Sheet

0-275: $2.05
275-500: $1.89
500-600: $1.89
600-1000: $1.78
