Product Summary

The TL-5902 is a tadiran battery.

Parametrics

TL-5902 absolute maximum ratings: (1)Rated voltage: 3.6V; (2)Maximum continuous current: 50mA; (3)Maximum pulse current capability: 100mA; (4)Rated 1 sec. pulse capability (to 3V): 20mA; (5)Operating temperature range: -55℃ to +85℃.

Features

TL-5902 features: (1)3.6 V Primary lithium-thionyl chloride (Li-SOCl2); (2)Fast voltage recovery after long term storage and/or usage; (3)High energy density; (4)High and stable operating voltage; (5)Low self discharge rate; (6)10 years shelf life; (7)Bobbin construction; (8)Hermetic glass-to-metal-sealing; (9)Non-flammable electrolyte; (10)Non-restricted for transportation.

Diagrams

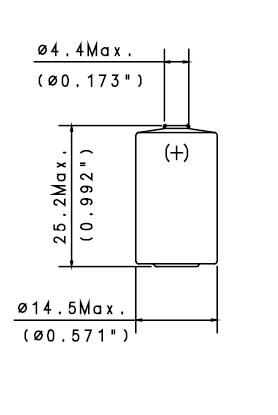

TL-5902 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TL-5902/SBP
TL-5902/SBP

Tadiran Batteries

Electronic Battery 1/2AA 1.1Ah AXIAL PN BLISTER PK

Data Sheet

Negotiable
TL-5902/T
TL-5902/T


BATT LITH 1/2AA 3.6V HC W/TABS

Data Sheet

0-1: $4.12
1-10: $3.71
10-50: $3.29
50-100: $2.88
100-250: $2.64
250-500: $2.47
500-1000: $2.26
1000-2500: $2.20
TL-5902/S
TL-5902/S


BATT LITH 1/2AA 3.6V HC CYLINDER

Data Sheet

0-1: $3.90
1-10: $3.51
10-50: $3.12
50-100: $2.73
100-250: $2.50
250-500: $2.34
500-1000: $2.15
1000-2500: $2.08
TL-5902/P
TL-5902/P


BATT LITH 1/2AA 3.6V HC W/LEADS

Data Sheet

0-1: $4.12
1-10: $3.71
10-50: $3.29
50-100: $2.88
100-250: $2.64
250-500: $2.47
500-1000: $2.26
1000-2500: $2.20
