Product Summary

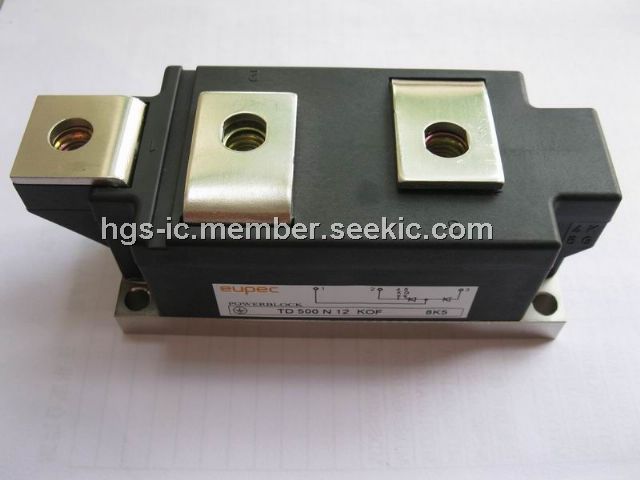

The TD500N12 is a Phase Control Thyristor Module.

Parametrics

TD500N12 absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages, VDRM,VRRM: 1200V; (2)non-repetitive peak forward off-state voltage, VDSM: 1200V; (3)non-repetitive peak reverse voltage, VRSM: 1300V; (4)maximum RMS on-state current, ITRMSM: 900 A; (5)average on-state current, ITAVM: 500A; (6)surge current, ITSM: 17000A.

Features

TD500N12 features: (1)on-state voltage: 1,53 V; (2)threshold voltage: 0,9 V; (3)slope resistance: 0,27 mΩ.

Diagrams

TD500N12 block diagram
