Product Summary

The SN7417N is a HEX buffer/driver with open-collector high-voltage output. It features high-voltage open-collector outputs for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays) and also are characterized for use as buffers for driving TTL inputs. The SN7417N has minimum breakdown voltages of 15 V.

Parametrics

SN7417N absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 5.5 V; (3)Output voltage, VO: 15 V; (4)Storage temperature range, Tstg: 65℃ to 150℃.

Features

SN7417N features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamp and Relay; (5)Inputs Fully Compatible With Most TTL Circuits.

Diagrams

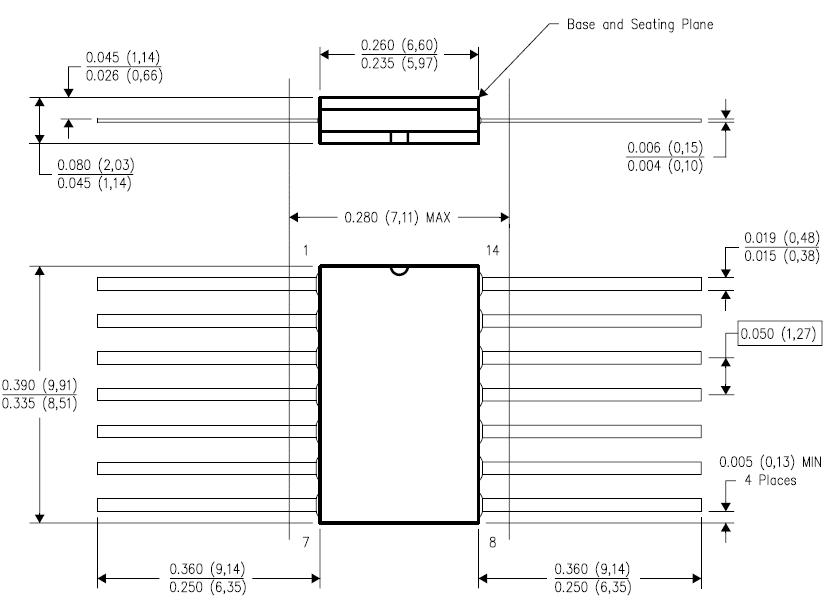

SN7417N package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN7417N
SN7417N
Texas Instruments
Buffers & Line Drivers Hex
Data Sheet
0-1: $0.90
1-25: $0.82
25-100: $0.65
100-250: $0.61
