Product Summary

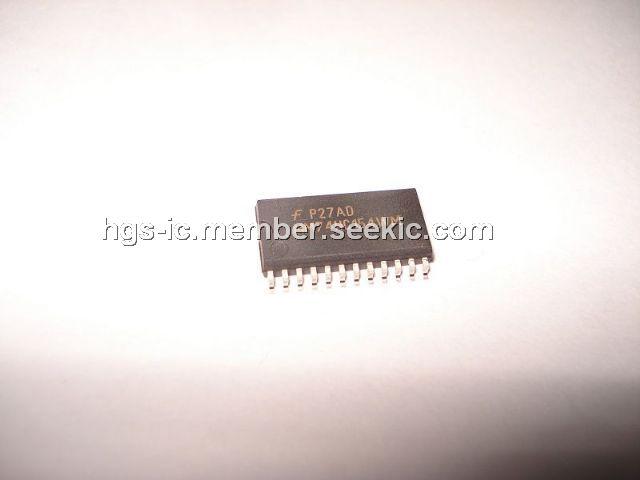

The MM74HC154WM is a 4-to-16 Line Decoder. The MM74HC154WM decoder utilizes advanced silicon-gate CMOS technology, and is well suited to memory address decoding or data routing applications. It possesses high noise immunity, and low power consumption of CMOS with speeds similar to low power Schottky TTL circuits.
Parametrics
MM74HC154WM absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): ?0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65 to +150℃; (8)Power Dissipation (PD): 600 mW; (9)Lead Temperature (TL): 260℃.
Features
MM74HC154WM features: (1)Typical propagation delay: 21 ns; (2)Power supply quiescent current: 80 μA; (3)Wide power supply voltage range: 2–6V; (4)Low input current: 1 μA maximum.

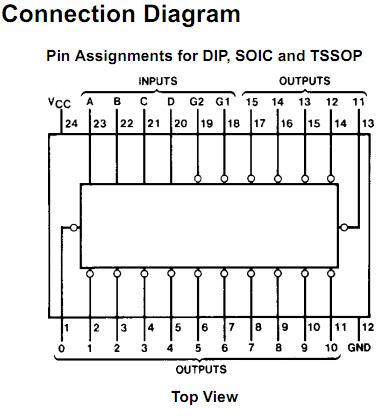

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC154WM |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 4-to-16 Line Decoder |
Data Sheet |
Negotiable |
|
||||
|
MM74HC154WM_Q |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 4-to-16 Line Decoder |
Data Sheet |
Negotiable |
|
||||
|
MM74HC154WMX |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 4-to-16 Line Decoder |
Data Sheet |
Negotiable |
|
||||
