Product Summary
The MA1040 is a Power Switching Regulator.
Parametrics
MA1040 absolute maximum ratings: (1)Storage Temperature Tstg: -30～125 ℃; (2)Operating Temperature Top: -20～125 ℃; (3)Junction Temperature Tj: 150 ℃; (4)Peak Input Voltage Vin: 850 V; (5)Input Current Iin: 44A; (6)Maximum Operating Frequency f(max): 200 kHZ; (7)Maximum Power Dissipation PD Ta=25℃: 33W; (8)PD Heatsink Tc=100℃: 14W.
Features
MA1040 features: (1)Input Rated Voltage: AC90～274 V; (2)Output Nominal Wattage: 12 W; (3)Output Nominal Voltage: 12 V; (4)Output Nominal Current: 11 A.

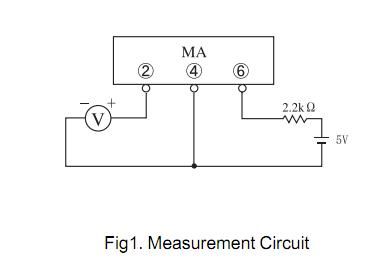

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MA1040-4100 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=40 |
Data Sheet |
Negotiable |
|
||||
|
MA1040-4104 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=40 |
Data Sheet |
Negotiable |
|
||||
|
MA1040-4105 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=40 |
Data Sheet |
Negotiable |
|
||||
|
MA1040-7100 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=40 |
Data Sheet |
Negotiable |
|
||||
|
MA1040-7104 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=40 |
Data Sheet |
Negotiable |
|
||||
|
MA1040-7105 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=40 |
Data Sheet |
Negotiable |
|
||||
