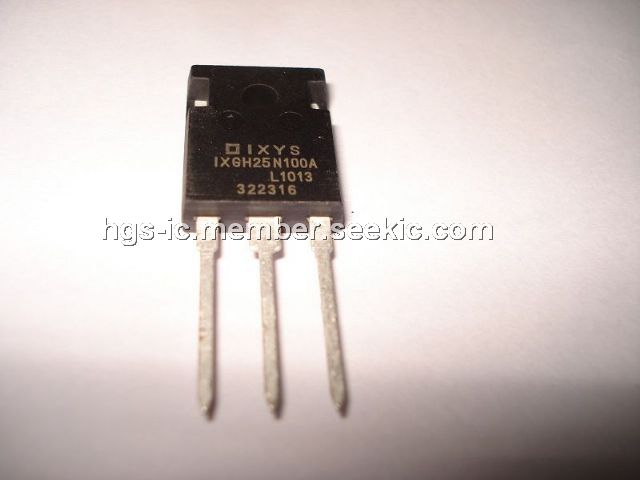

IXGH25N100A

high speed IGBT, to-3p, 1000 V, 25A, 200 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~2.50

PartNumber:: IXGH25N100A

Brand:: IXYS Corporation - ixys | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. handy chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-11

From Other Seller

Part Number:IXGH25N100A
US $2.00 - 2.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IXGH25N100A is a high speed IGBT. It is suitable for (1)AC motor speed control; (2)DC servo and robot drives; (3)DC choppers; (4)Uninterruptible power supplies (UPS); (5)Switch-mode and resonant-mode power supplies.

Parametrics

IXGH25N100A absolute maximum ratings: (1)VCES: 1000 V; (2)VCGR: 1000 V; (3)VGES Continuous: ±20 V; (4)VGEM Transient: ±30 V; (5)IC25: 50A; (6)IC90: 25A; (7)ICM: 100 A; (8)PC: 200 W; (9)TJ: -55 to +150℃; (10)TJM: 150℃; (11)Tstg: -55 to +150℃.

Features

IXGH25N100A features: (1)International standard packages; (2)2nd generation HDMOSTM process; (3)Low VCE(sat) for low on-state conduction losses; (4)High current handling capability; (5)MOS Gate turn-on drive simplicity; (6)Voltage rating guaranteed at high temperature (125℃).
