Product Summary

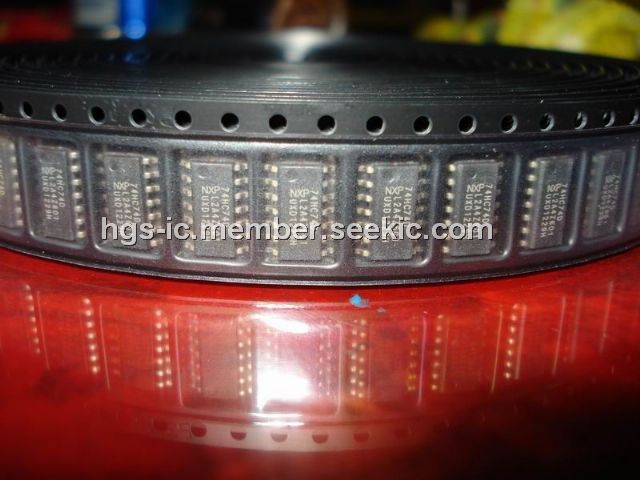

The 74HC74D is a dual positive edge triggered D-type flip-flop. The 74HC74D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC74D is specified in compliance with JEDE standard no. 7A.
Parametrics
74HC74D absolute maximum ratings: (1)tPHL/tPLH propagation delay CL = 14 pF; VCC = 5 V nCP to nQ, nQ: 15 ns; (2)nSD to nQ, nQ: 15 ns; (3)nRD to nQ, nQ: 16 ns; (4)fmax maximum clock frequency: 76 MHz; (5)CI input capacitance: 3.5 pF; (6)CPD power dissipation capacitance per flip-flop notes 1 and 2: 24 pF; (7)Package temperature range: -40℃ to +125℃.
Features
74HC74D features: (1)Symmetrical output impedance; (2)Low power dissipation; (3)High noise immunity; (4)Balanced propagation delays; (5)Specified in compliance with JEDEC standard no. 7A.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC74D |
NXP Semiconductors |
Flip Flops DUAL D F/F POS-EDGE |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC74D,652 |
NXP Semiconductors |
Flip Flops DUAL D F/F POS-EDGE |
Data Sheet |
|
|
||||||||||||
|
74HC74DB |
NXP Semiconductors |
Flip Flops DUAL D-TYPE POSITIVE EDGE-TRIG |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC74DR2G |
ON Semiconductor |
Flip Flops DUAL D TYPE FLIP FLOP |
Data Sheet |
|
|
||||||||||||
 |
74HC74DTR2G |
ON Semiconductor |
Flip Flops DUAL D TYPE FLIP FLOP |
Data Sheet |
|
|
||||||||||||
|
74HC74DB-T |
NXP Semiconductors |
Flip Flops DUAL D-TYPE POSITIVE EDGE-TRIG |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC74DB,118 |
NXP Semiconductors |
Flip Flops DUAL D-TYPE POSITIVE |
Data Sheet |
|
|
||||||||||||
|
74HC74DB,112 |
NXP Semiconductors |
Flip Flops DUAL D-TYPE POSITIVE |
Data Sheet |
|
|
||||||||||||
