Product Summary

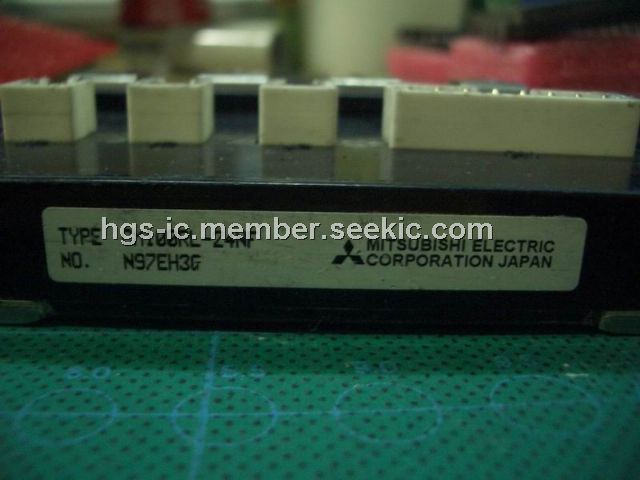

The cm100rl-24nf is an IGBT module. It is suitable for AC drive inverters & Servo controls, etc.
Parametrics
cm100rl-24nf absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Maximum collector dissipation, PC: 620W; (4)Collector current, IC: 100A; (5)Emitter current, IE: 100A.
Features
cm100rl-24nf features: (1)IC: 100A; (2)VCES: 1200V; (3)Insulated Type; (4)7-elements in a pack.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100RL-24NF |
|
IGBT MOD 7PAC 1200V 100A NF SER |
Data Sheet |
Negotiable |
|
||||||
