Product Summary

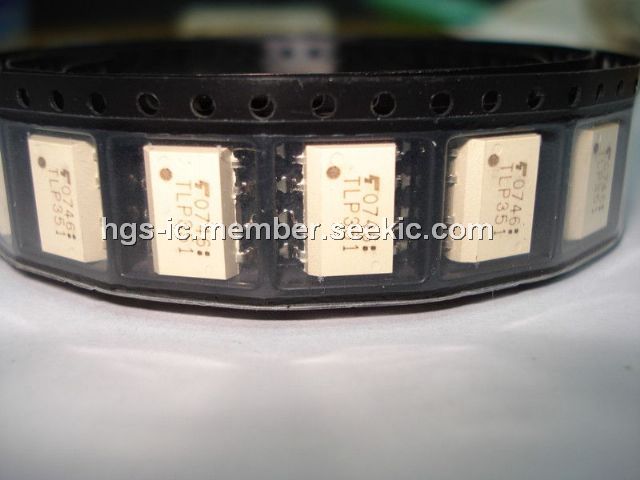

The TLP351 is a Photocoupler. The TLP351 consists of a GaAAs light emitting diode and a integrated photodetector. This unit is 8-lead DIP package. The TLP351 is suitable for gate driving circuit of IGBT or power MOS FET. Especially TLP351 is capable of direct gate drive of lower Power IGBTs.

Parametrics

TLP351 absolute maximum ratings: (1)Operating frequency f: 25 kHz; (2)Storage temperature range Tstg: -55 to 125℃; (3)Operating temperature range Topr: -40 to 100℃; (4)Lead soldering temperature (10 s) Tsol: 260℃; (5)Isolation voltage (AC, 1 minute, R.H. ≤ 60%) BVS: 3750 Vrms.

Features

TLP351 features: (1)Peak output current: ±0.6 A (max); (2)Guaranteed performance over temperature: -40 to 100℃; (3)Supply current: 2 mA (max); (4)Power supply voltage: 10 to 30 V; (5)Threshold input current: IF = 5 mA (max); (6)Switching time (tpLH/tpHL) : 700 ns (max); (7)Common mode transient immunity: 10 kV/μs; (8)Isolation voltage: 3750 Vrms.

Diagrams

TLP351 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLP351
TLP351
Other

Data Sheet
Negotiable
TLP351(F)
TLP351(F)
Toshiba
Logic Output Optocouplers 3750Vrms 0.2 Low power
Data Sheet
0-1: $1.05
1-10: $0.84
10-100: $0.63
100-250: $0.59
TLP351(TP1,F)
TLP351(TP1,F)
Toshiba
Logic Output Optocouplers IC cplr IGBT drive
Data Sheet
0-950: $0.53
950-1000: $0.51
1000-2000: $0.50
2000-5000: $0.49
TLP351A(F)
TLP351A(F)
Toshiba
Logic Output Optocouplers Photo-IC 3750 Vrms 0.35 ms 5mA Low PWR
Data Sheet
0-1: $0.89
1-10: $0.80
10-100: $0.74
100-250: $0.62
TLP351F
TLP351F
Other

Data Sheet
Negotiable
TLP351H(F)
TLP351H(F)
Toshiba
Logic Output Optocouplers Photo-IC 3750 Vrms 35V VCC 5mA 30V
Data Sheet
0-1: $1.39
1-10: $1.25
10-100: $1.16
100-250: $0.97
