Product Summary

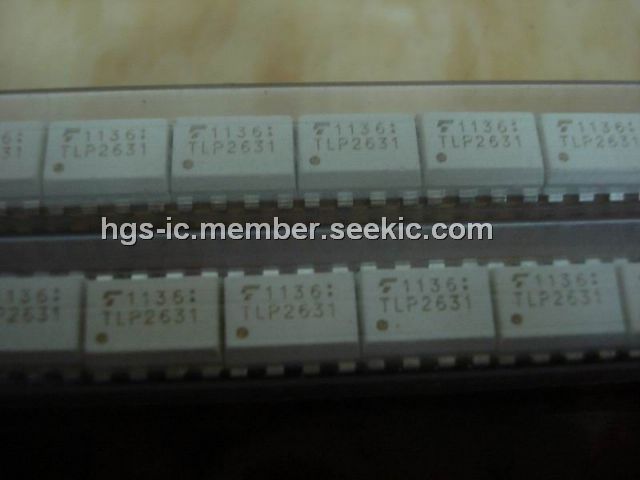

The TLP2631 is an isolated line receiver. The TLP2631 dual photocoupler consists of a pair of GaAιAs light emitting diode and integrated high gain, high speed photodetector.

Parametrics

TLP2631 absolute maximum ratings: (1)Forward current (each channel) IF: 20 mA; (2)Pulse forward current (each channel) IFP: 30 mA; (3)Reverse voltage (each channel) VR: 5 V; (4)Output current (each channel) IO: 16 mA; (5)Output voltage (each channel) VO: -0.5~7 V; (6)Supply voltage (1 minute maximum) VCC: 7 V; (7)Output collector power dissipation (each channel) PO: 40 mW; (8)Operating temperature range Tstg: -55~125℃; (9)Storage temperature range Topr: -40~85℃; (10)Lead soldering temperature (10s) Tsol: 260℃; (11)Isolation voltage (AC, 1 min., R.H.≤ 60%) BVS: 2500 Vrms.

Features

TLP2631 features: (1)Input current threshold: IF = 5mA(max.); (2)Switching speed: 10MBd(typ.); (3)Common mode transient immunity: ± 1000V / μs (min.); (4)Guaranteed performance over temperature: 0~70℃; (5)Isolation voltage: 2500Vrms(min.); (6)UL recognized: UL1577, file no. E67349.

Diagrams

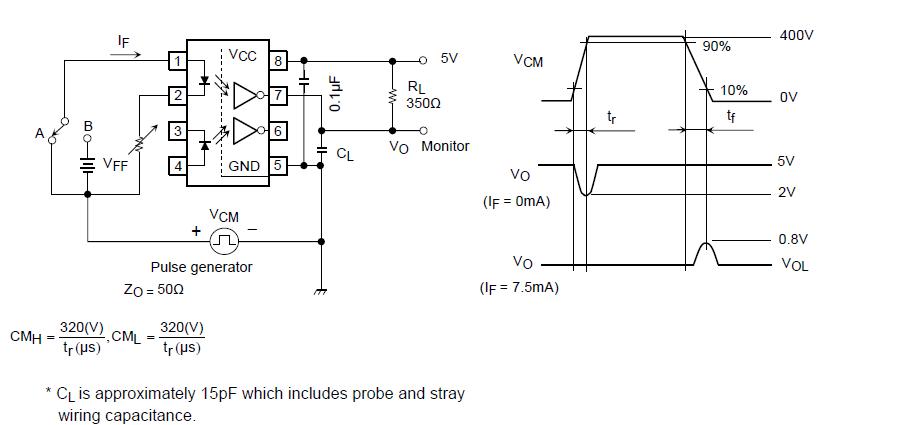

TLP2631 waveform
