Product Summary

The SKM200GAL126D is an IGBT module. It is suitalbe for electronic welders, AC inverter drives and UPS.

Parametrics

SKM200GAL126D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 260A; (3)ICRM: 300A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 4000V.

Features

SKM200GAL126D features: (1)homogeneous Si; (2)trench=trenchgate technology; (3)VCE(sat) with positive temperature coefficient; (4)high short circuit capability, self limiting to 6Ic.

Diagrams

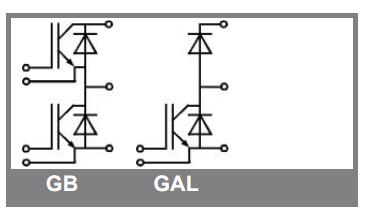

SKM200GAL126D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SKM200GAL126D
SKM200GAL126D

Other


Data Sheet

Negotiable
