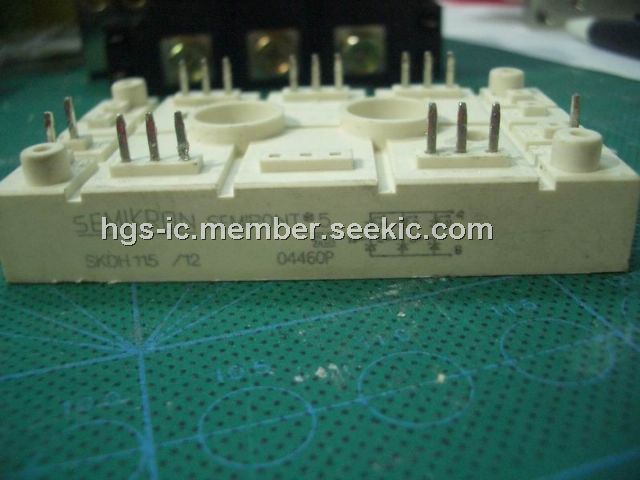

Product Summary

The SKDH115-12 is a half controlled 3-phase bridge rectifier. The applications are for DC drives with a fixed direction of rotation, controlled field rectifier for DC motors and controlled battery charger.

Parametrics

SKDH115-12 absolute maximum ratings: (1)ID: 110A; (2)ITSM, IFSM: 1050A; (3)VT, VF: 1.8V; (4)VGT: 3V; (5)IGT: 150mA; (6)VGD: 0.25V; (7)IGD: 5mA.

Features

SKDH115-12 features: (1)compact design; (2)two screws mounting; (3)heat transfer and isolation through direct copper board; (4)low resistance in steady-state and high reliability; (5)high surge currents; (6)UL recognized, file no E63532.

Diagrams

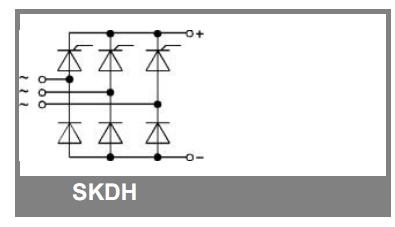

SKDH115-12 block diagram
