Product Summary
The P421F is a Photocoupler. The P421F consists of a silicone photo-transistor optically coupled to a gallium arsenide infrared emitting diode in a four lead plastic DIP (DIP4) with having high isolation voltage (AC: 5kVRMS (min)).
Parametrics
P421F absolute maximum ratings: (1)Maximum operating insulation voltage: 1130VPK; (2)Maximum permissible over voltage: 8000VPK.
Features
P421F features: (1)Collector-emitter voltage: 80V (min); (2)Current transfer ratio: 50% (min) Rank GB: 100% (min); (3)Isolation voltage: 5000 Vrms (min); (4)UL recognized: UL1577; (5)BSI approved: BS EN60065: 2002 Approved no. 8411 BS EN60950-1: 2002 Approved no. 8412; (6)SEMKO approved: EN60065, EN60950, EN60335 Approved no. 9910249 / 01.

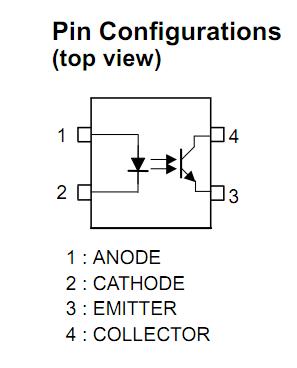

Diagrams
 |
