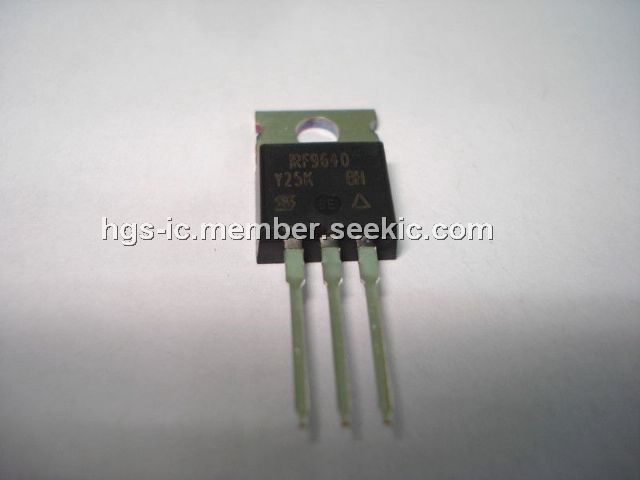

IRF9640

Power MOSFET, TO-220AB, Dynamic dV/dt Rating, Fast Switching, Lead (Pb)-free Available

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~1.00

PartNumber:: IRF9640

Brand:: International Rectifier - IR | Pack: TO | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. handy chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-20

From Other Seller

Part Number:IRF9640
US $0.60 - 1.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF9640 is the third generation power MOSFET from Vishay which provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF9640 absolute maximum ratings: (1)Drain-Source Voltage VDS: -200 V; (2)Gate-Source Voltage VGS: ± 20 V; (3)Continuous Drain Current VGS at - 10 V TC = 25 ℃, ID: -11A; TC = 100 ℃: - 6.8 A; (4)Pulsed Drain Current IDM: - 44A; (5)Linear Derating Factor: 1.0 W/℃; (6)Single Pulse Avalanche Energy EAS: 700 mJ; (7)Repetitive Avalanche Current IAR: - 11 A; (8)Repetitive Avalanche Energya EAR: 13 mJ; (9)Maximum Power Dissipation TC = 25 ℃ PD: 125 W; (10)Peak Diode Recovery dV/dtc dV/dt: - 5.0 V/ns; (11)Operating Junction and Storage Temperature Range TJ, Tstg: - 55 to + 150℃; (12)Soldering Recommendations (Peak Temperature) for 10 s: 300d ℃; (13)Mounting Torque 6-32 or M3 screw: 10 lbf · in; 1.1 N · m.

Features

IRF9640 features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)P-Channel; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements; (7)Lead (Pb)-free Available.
