Product Summary

The IRFP254PBF is a 125mohm power MOSFET. Fifth Generation HEXFET IRFP254PBF from International Rectifier utilize advanced processing techniques to achieve extremely low on resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design of the IRFP254PBF that HEXFET Power MOSFET is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRFP254PBF absolute maximum ratings: (1)VGS Gate-to-Source Voltage: ± 20 V; (2)EAS Single Pulse Avalanche Energy: 300 mJ; (3)IAR Avalanche Current: 14 A; (4)EAR Repetitive Avalanche Energy: 22 mJ; (5)dv/dt Peak Diode Recovery dv/dt: 7.4 V/ns; (6)Operating Junction and Storage Temperature Range: -55 to + 175℃.

Features

IRFP254PBF features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated; (6)Ease of Paralleling; (7)Simple Drive Requirements.

Diagrams

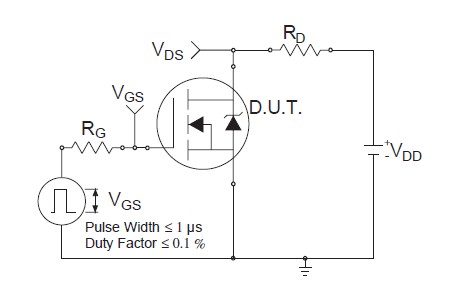

IRFP254PBF Switching Time Test Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

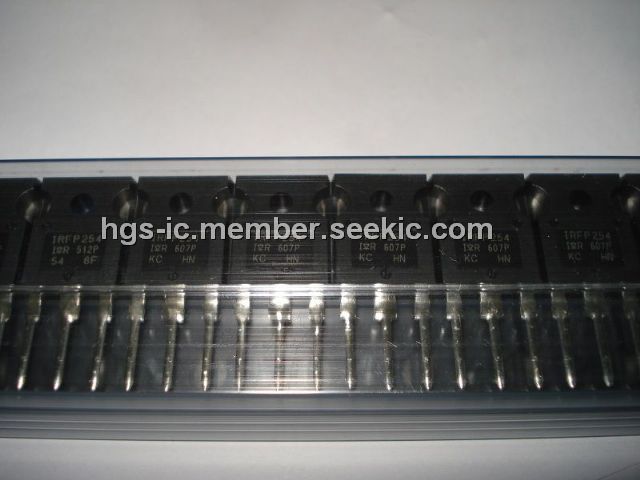

IRFP254PBF
IRFP254PBF

Vishay/Siliconix

MOSFET N-Chan 250V 23 Amp

Data Sheet

0-1: $1.89
1-10: $1.52
10-100: $1.38
100-250: $1.25
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFP044
IRFP044

Vishay/Siliconix

MOSFET N-Chan 60V 57 Amp

Data Sheet

Negotiable
IRFP044, SiHFP044
IRFP044, SiHFP044

Other


Data Sheet

Negotiable
IRFP044N
IRFP044N


MOSFET N-CH 55V 53A TO-247AC

Data Sheet

Negotiable
IRFP044NPBF
IRFP044NPBF

International Rectifier

MOSFET MOSFT 55V 49A 20mOhm 40.7nCAC

Data Sheet

0-1: $1.21
1-25: $0.79
25-100: $0.57
100-250: $0.53
IRFP044PBF
IRFP044PBF

Vishay/Siliconix

MOSFET N-Chan 60V 57 Amp

Data Sheet

Negotiable
IRFP048
IRFP048

Vishay/Siliconix

MOSFET N-Chan 60V 70 Amp

Data Sheet

0-331: $3.92
331-500: $3.60
500-1000: $3.46
1000-2000: $3.37
