Product Summary

The 74HC32D is a quad 2-input OR gate. Iti is a high-speed Si-gate CMOS device and is a pin compatible with low power Schottky TTL (LSTTL). The 74HC32D is specified in compliance with JEDEC standard NO. 7A.

Parametrics

74HC32D absolute maximum ratings: (1)tPHL/ tPLH propagation delay nA, nB to nY CL = 15 pF; VCC = 5 V: 6 ns; (2)CI input capacitance :3.5 pF; (3)CPD power dissipation capacitance per gate: 16 pF.

Features

74HC32D features: (1)Output capability: standard; (2)ICC category: SSI.

Diagrams

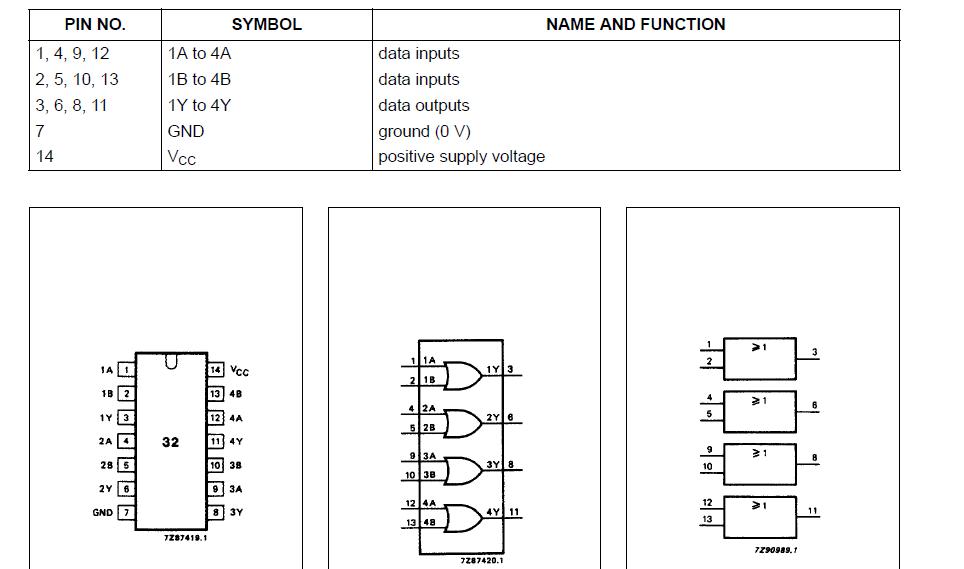

74HC32D pin configuration
