Product Summary

The 23K256-I/SN is a 256 Kbit Serial SRAM. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the 23K256-I/SN is controlled through a Chip Select (CS) input.

Parametrics

23K256-I/SN absolute maximum ratings: (1)VCC: 4.5V; (2)All inputs and outputs w.r.t. VSS: -0.3V to VCC +0.3V; (3)Storage temperature: -65 to 150℃; (4)Ambient temperature under bias: -40 to 125℃; (5)ESD protection on all pins: 2kV.

Features

23K256-I/SN features: (1)Max. Clock 20 MHz; (2)Low-Power CMOS Technology; (3)32,768 × 8-bit Organization; (4)32-Byte Page; (5)HOLD pin; (6)Flexible Operating modes: Byte read and write; Page mode (32 Byte Page); Sequential mode; (7)Sequential Read/Write; (8)High Reliability; (9)Temperature Ranges Supported:; (10)Pb-Free and RoHS Compliant, Halogen Free.

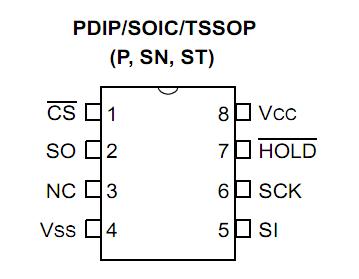

Diagrams

23K256-I/SN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
23K256-I/SN
23K256-I/SN

Microchip Technology

SRAM 256K 32K X 8 2.7V SERIAL SRAM IND

Data Sheet

0-1: $0.80
1-10: $0.64
10-25: $0.61
25-100: $0.59
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
23K256
23K256

Other


Data Sheet

Negotiable
23K256-E/P
23K256-E/P

Microchip Technology

SRAM 256K 32K X 8 2.7V SERIAL SRAM EXT

Data Sheet

0-1: $0.89
1-10: $0.71
10-25: $0.68
25-100: $0.65
23K256-E/SN
23K256-E/SN

Microchip Technology

SRAM 256K 32K X 8 2.7V SERIAL SRAM EXT

Data Sheet

0-1: $0.84
1-10: $0.67
10-25: $0.65
25-100: $0.62
23K256-E/ST
23K256-E/ST

Microchip Technology

SRAM 256K 32K X 8 2.7V SERIAL SRAM EXT

Data Sheet

0-1: $0.87
1-10: $0.70
10-25: $0.67
25-100: $0.64
23K256-I/P
23K256-I/P

Microchip Technology

SRAM 256K 32K X 8 2.7V SERIAL SRAM IND

Data Sheet

0-1: $0.84
1-10: $0.67
10-25: $0.65
25-100: $0.62
23K256-I/SN
23K256-I/SN

Microchip Technology

SRAM 256K 32K X 8 2.7V SERIAL SRAM IND

Data Sheet

0-1: $0.80
1-10: $0.64
10-25: $0.61
25-100: $0.59
