Product Summary
The 2MBI150N-120 is an IGBT MODULE. The applications of the 2MBI150N-120 include High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI150N-120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200 V; (2)Gate -Emitter Voltage: ± 20 V; (3)Continuous IC 150; (4)Collector Current: 150 A; (5)Max. Power Dissipation: 1100 W; (6)Operating Temperature: +150 ℃; (7)Storage Temperature: -40 ~ +125 ℃; (8)Isolation Voltage A.C. 1min.: 2500 V.
Features
2MBI150N-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

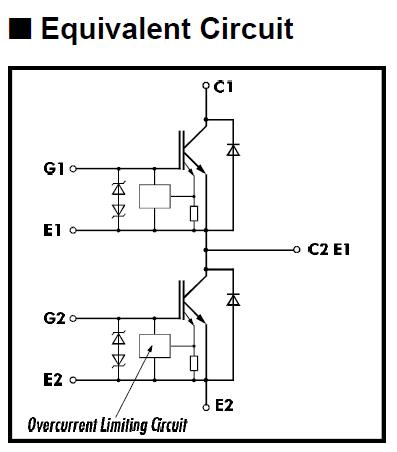

Diagrams
