Product Summary
The ULN2003A is a high-voltage, high-current Darlington transistor array. The device consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability. Applications of the ULN2003A include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. For 100-V (otherwise interchangeable) versions of the ULN2003A, see the SN75468 and SN75469, respectively.
Parametrics
ULN2003A absolute maximum ratings: (1)Collector-emitter voltage: 50 V; (2)Clamp diode reverse voltage: 50 V; (3)Input voltage, VI: 30 V; (4)Peak collector current: 500 mA; (5)Output clamp current, IOK: 500 mA; (6)Total emitter-terminal current: -2.5 A; (7)Operating free-air temperature range, TA: -20℃ to 70℃; (8)Package thermal impedance, θJA: D package: 73℃/W; N package: 67℃/W; NS package: 64℃/W; (9)Package thermal impedance, θJC: D package: 36℃/W; N package: 54℃/W; (10)Operating virtual junction temperature, TJ: 150℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (12)Storage temperature range, Tstg: -65℃ to 150℃.
Features
ULN2003A features: (1)500mA Rated Collector Current(Single Output); (2)High-Voltage Outputs: 50 V; (3)Output Clamp Diodes; (4)Inputs Compatible With Various Types of Logic; (5)Relay-Driver Applications; (6)Designed to Be Interchangeable With Sprague ULN2001A Series.

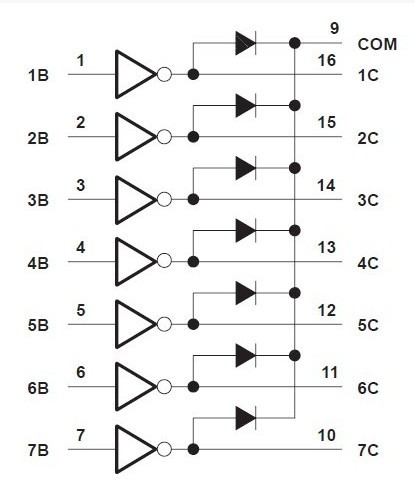

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ULN2003A |
STMicroelectronics |
Transistors Darlington Seven NPN Array |
Data Sheet |
|
|
||||||||||||
|
ULN2003AD |
Texas Instruments |
Transistors Darlington Darlington |
Data Sheet |
|
|
||||||||||||
|
ULN2003ADG4 |
Texas Instruments |
Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays |
Data Sheet |
|
|
||||||||||||
|
ULN2003ADR |
Texas Instruments |
Transistors Darlington Darlington |
Data Sheet |
|
|
||||||||||||
|
ULN2003ADR2G |
ON Semiconductor |
Transistors Darlington DARLINGTON TRNS ARRY |
Data Sheet |
|
|
||||||||||||
|
ULN2003ADRE4 |
Texas Instruments |
Transistors Darlington Darlington |
Data Sheet |
|
|
||||||||||||
|
ULN2003ADRG3 |
Texas Instruments |
Transistors Darlington Hi-Vltg,Hi-Current Darl Trans Array |
Data Sheet |
|
|
||||||||||||
|
ULN2003ADRG4 |
Texas Instruments |
Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays |
Data Sheet |
|
|
||||||||||||
