Product Summary

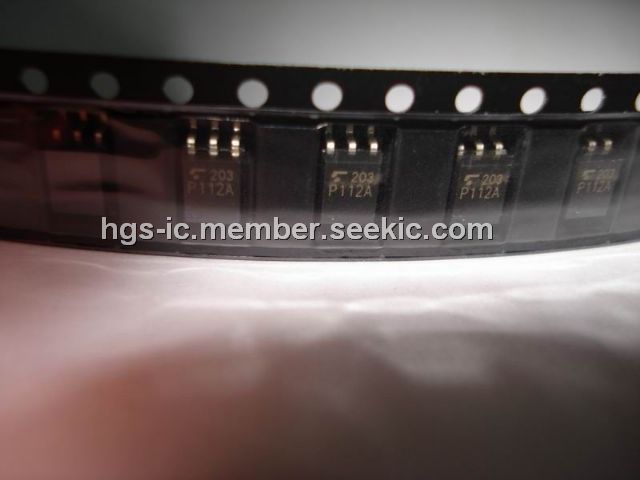

The TLP112A is a small outline coupler, and suitable for surface mount assembly. The TLP112A consists of a high output power GaAℓAs light emitting diode, optically coupled to a high speed detector of one chip photodiode−transistor.
Parametrics
TLP112A absolute maximum ratings: (1)Forward current IF: 20 mA; (2)Pulse forward current IFP: 40 mA; (3)Peak transient forward current IFPT: 1 A; (4)Reverse voltage VR: 5 V; (5)Output current IO: 8 mA; (6)Peak output current IOP: 16 mA; (7)Supply voltage VCC: - 0.5 V ~ 15 V; (8)Output voltage VO: 0.5 V ~ 15 V; (9)Output power dissipation PO: 100 mW; (10)Operating temperature range Topr: -55℃ ~ 100℃; (11)Storage temperature range Tstg: -55℃ ~ 125℃; (12)Lead soldering temperature(10s) Tsol: 260℃.
Features
TLP112A features: (1)Isolation voltage: 2500Vrms (min.); (2)Switching speed: tpHL=0.8μs, tpLH=0.8μs(max.)(RL=1.9kΩ); (3)TTL compatible; (4)UL recognized: UL1577, file no. E67349.

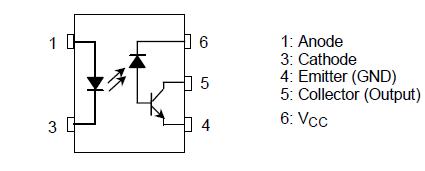

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP112A |
|
TRANSCPLR HS TRANS OUT 6MFSOP-5 |
Data Sheet |
Negotiable |
|
||||
 |
TLP112A(F) |
Toshiba |
High Speed Optocouplers IC cplr 1Mbps CTR=20%min |
Data Sheet |
Negotiable |
|
||||
|
TLP112A(TPR) |
|
TRANSCPLR HS TRANS OUT 6MFSOP-5 |
Data Sheet |
Negotiable |
|
||||
|
TLP112A(TPR,F) |
|
TRANSCPLR HS TRANS OUT 6MFSOP-5 |
Data Sheet |
Negotiable |
|
||||
|
TLP112ATPRF |
Toshiba |
High Speed Optocouplers IC cplr 1Mbps CTR=20%min |
Data Sheet |
Negotiable |
|
||||
