Product Summary

The SN75176BP is a differential bus transceiver which is an integrated circuit designed for bidirectional data communication on multipoint bus transmission lines. The SN75176BP is designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27. The SN75176BP combines a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply.

Parametrics

SN75176BP absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Voltage range at any bus terminal: –10 V to 15 V; (3)Enable input voltage, VI: 5.5 V; (4)Package thermal impedance, θJA: D package: 97℃/W, P package: 85℃/W, PS package: 95℃/W; (5)Operating virtual junction temperature, TJ: 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (7)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN75176BP features: (1)Bidirectional Transceivers; (2)Meet or Exceed the Requirements of ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27; (3)Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments; (4)3-State Driver and Receiver Outputs; (5)Individual Driver and Receiver Enables; (6)Wide Positive and Negative Input/Output Bus Voltage Ranges; (7)Driver Output Capability: ±60 mA Max; (8)Thermal Shutdown Protection; (9)Driver Positive and Negative Current Limiting; (10)Receiver Input Impedance: 12 kΩ Min; (11)Receiver Input Sensitivity: ±200 mV; (12)Receiver Input Hysteresis: 50 mV Typ; (13)Operate From Single 5-V Supply.

Diagrams

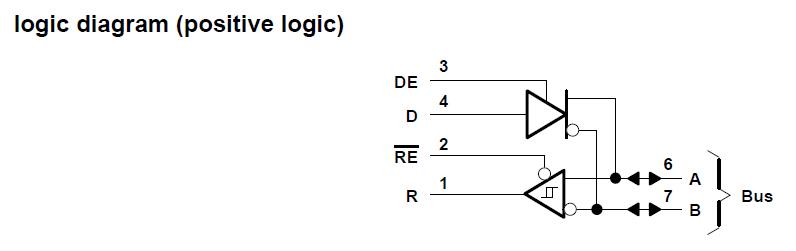

SN75176BP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN75176BP
SN75176BP

Texas Instruments

Buffers & Line Drivers Bus Diff

Data Sheet

0-1: $0.34
1-25: $0.30
25-100: $0.23
100-250: $0.23
SN75176BPE4
SN75176BPE4

Texas Instruments

Buffers & Line Drivers Differential Bus Transceiver

Data Sheet

0-1: $0.47
1-25: $0.37
25-100: $0.32
100-250: $0.28
SN75176BPSRG4
SN75176BPSRG4

Texas Instruments

Buffers & Line Drivers Differential Bus Transceiver

Data Sheet

0-1: $0.55
1-25: $0.42
25-100: $0.37
100-250: $0.32
SN75176BPSR
SN75176BPSR

Texas Instruments

Buffers & Line Drivers Differential Bus Transceiver

Data Sheet

0-1: $0.55
1-25: $0.42
25-100: $0.37
100-250: $0.32
