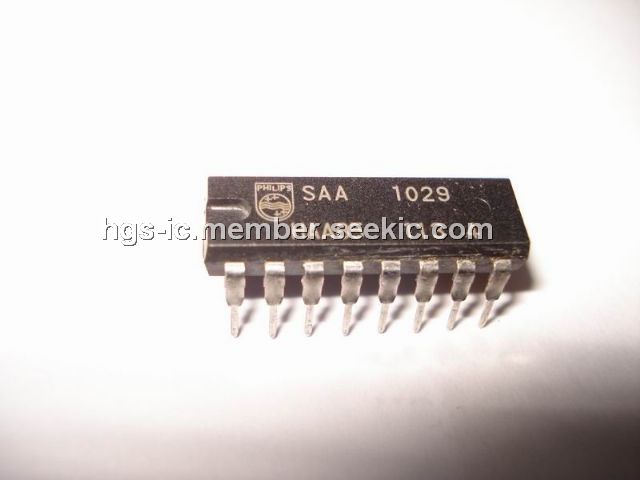

SAA1029

SAA1029, universal industrial logic and interface circuit, DIP, 14 V to 31,2 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~5.00

PartNumber:: SAA1029

Brand:: Philips Electronics India Limited - PHILIPS | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. handy chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-22

From Other Seller

Part Number:SAA1029
US $3.00 - 5.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

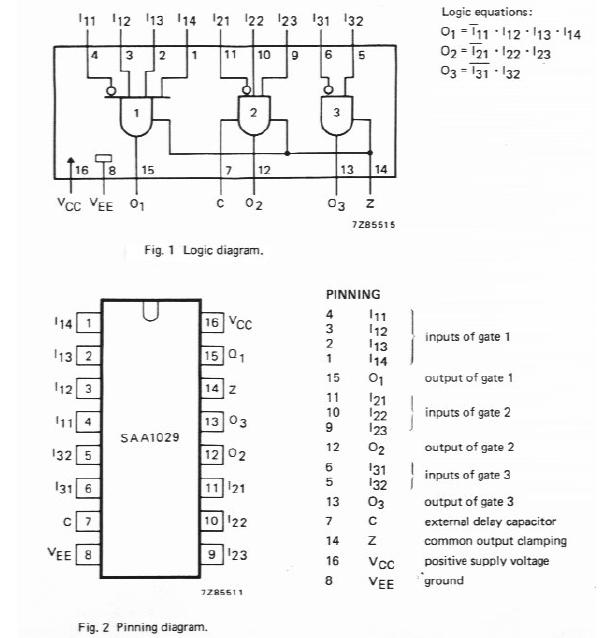

The SAA1029 is a universal industrial logic and interface circuit. The most fundamental industrial control functions can be accomplished. The SAA1029 can be used as direct interface with LOCMOS (CMOS) Ics for realizing more complex functions. Therefore, the output signal can be limited to the voltage level of the common output claming pin Z.

Parametrics

SAA1029 absolute maximum ratings: (1)Supply voltage range VCC: 14 V to 31,2 V; (2)Operating ambient temerature range Tamb: -30℃ to +85℃; (3)Input voltage HIGH VIH: 7,5 V to 44 V; (4)Output voltage HIGH (without clamping) VOH: 13 V to 30 V; (5)Output voltage HIGH (without clamping at pin Z) VOH: 2,0 V to (VCC –0,7) V; (6)Input current II: max. 10mA; (7)Quiescent supply current ICC: typ. 7,8mA.

Features
