Product Summary

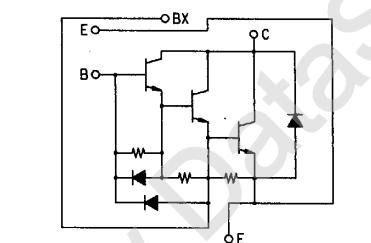

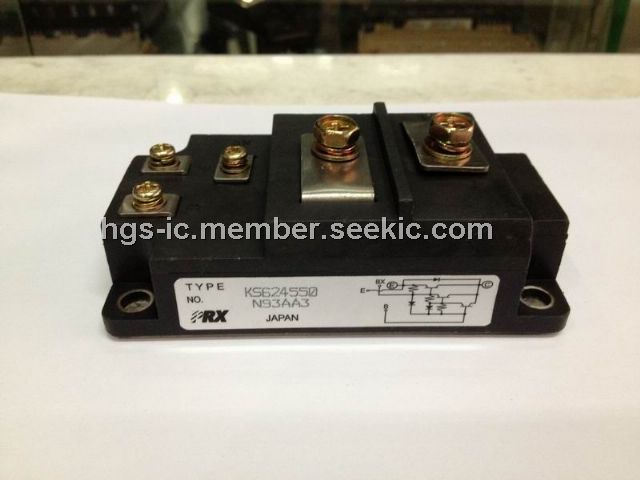

The KS624550 is a high-beta single darlington transistor module. It is designed for use in switching applications. The device is isolated, consisting of one darlington transistor with a reverse parallel connected high speed diode and base to emitter speed up diode. The KS624550 is suitable for inverters, DC motor control, switching power supplies and AC motor control.
Parametrics
KS624550 absolute maximum ratings: (1)junction temperature, Tj: -40 to 150℃; (2)storage temperature, Tstg: -40 to 125℃; (3)collector emitter sustaining voltage, VCEO(sus): 450V; (4)collector-base volage, VCBO: 600V; (5)emitter base voltage, VEBO: 7V.
Features
KS624550 features: (1)isolated mounting; (2)planar chips; (3)discrete fast revoery feedback diode; (4)high gain; (5)base-emitter speed-up diode.
