Product Summary

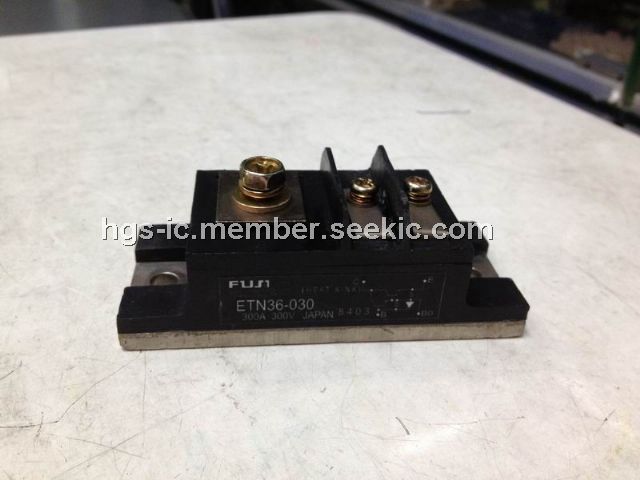

The ETN36-030 is a building block transistor.
Parametrics
ETN36-030 general specifications:(1)VCBO:400V; (2)VCEO:400V; (3)VCEO(SUS):320V; (4)VEBO:6V; (5)IC:300A; (6)ICP:500A; (7)-IC:40A; (8)IB:12A; (9)IBP:24A; (10)PC:l500W; (11)TJ:+150℃; (12)Tstg:-40℃ to +125℃; (13)m:270g.
Features
ETN36-030 features: (1)high current; (2)high DC current gain; (3)non insuiated type.

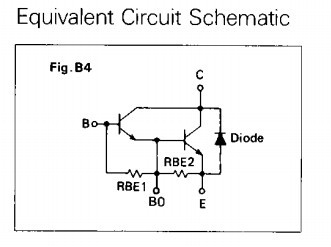

Diagrams
