Product Summary

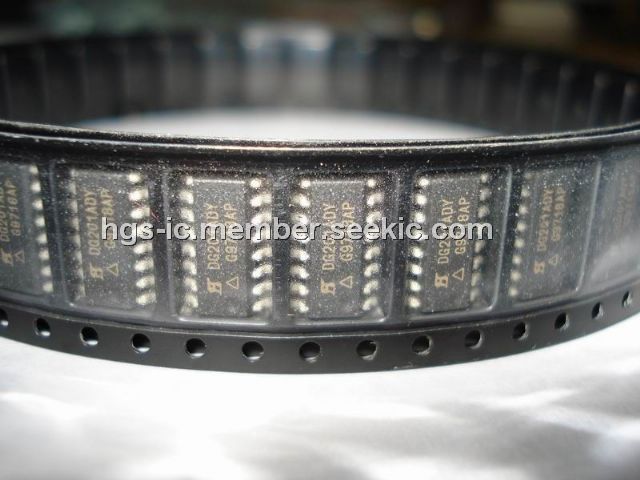

The DG201ADY is a normally closed, quad single-pole single-throw(SPST) analog switch. The CMOS switch can be continuously operated with power supplies ranging from ±4.5V to ±18V. Maxim guarantees that the DG201ADY will not latch up if the power supply is disconnected with input signals still connected.
Parametrics
DG201ADY absolute maximum ratings: (1)V+ to V- : 44V; (2)VL to Ground: -0.3V, 25V; (3)VS or VD to V+: 0, -40V; (4)VS or VD to V-: 0, 40V; (5)V+ to Ground: 25V; (6)V- to Ground: -25V; (7)Current, Any Terminal Except S or D: 30mA; (8)Continuous Current, S or D: 20mA; (9)Storage Temperature Range: -65℃ to +125℃.
Features
DG201ADY features: (1)Guaranteed ±4.5V to ±18V Operation; (2)No VL Supply Required; (3)Nonlatching with Supplies Turned Off and Input Signals Present; (4)CMOS and TTL Logic Compatible; (5)Monolithic, Low-Power CMOS Design.

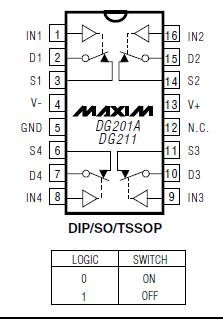

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DG201ADY |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DG201ADY/GG8 |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DG201ADY+ |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS |
Data Sheet |
|
|
||||||||||||
|
DG201ADY+T |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS |
Data Sheet |
|
|
||||||||||||
|
DG201ADY-C30037 |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
|
DG201ADY-T |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
