Product Summary

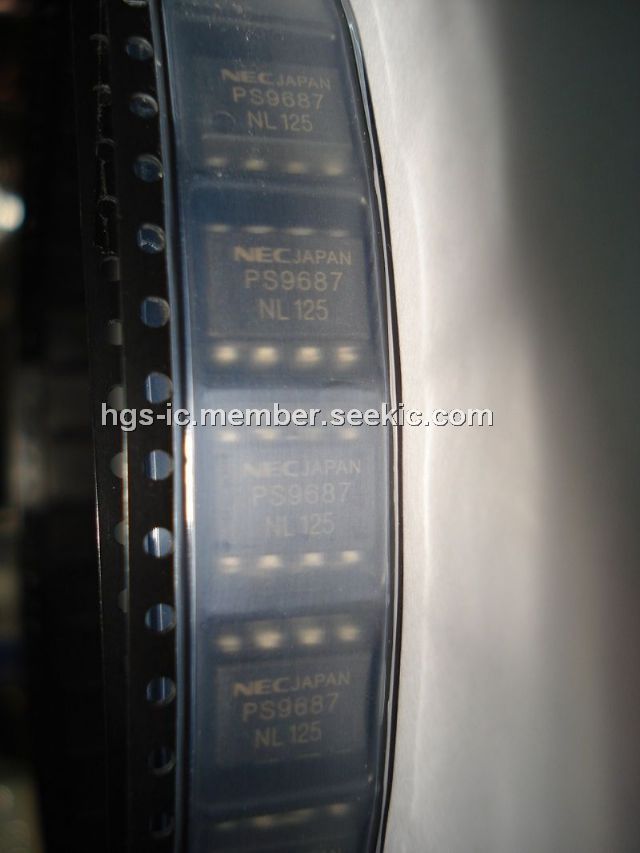

The ps9687 is an 8-pin DIP photocoupler. The ps9687 is optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The ps9687 is designed specifically for long creepage-distance as well as high common mode transient immunity (CMR) and high speed digital output type. Consequently, they are suitable for high speed logic interface that needs long creepage-distance (8 mm) on mounting. The applications of the ps9687 are FA Network, Measurement equipment and PDP.

Parametrics

ps9687 absolute maximum ratings: (1)Diode Forward Current, IF 30 mA; (2)Reverse Voltage VR: 5 V; (3)Detector Supply Voltage VCC: 7 V; (4)Output Voltage VO: 7 V; (5)Output Current IO: 25 mA; (6)Power Dissipation PC: 40 mW; (7)Isolation Voltage BV: 5 000 Vr.m.s; (8)Operating Ambient Temperature TA: -40 to +85℃; (9)Storage Temperature Tstg: -55 to +125℃.

Features

ps9687 features: (1)Long creepage distance (8 mm MIN.); (2)High common mode transient immunity (CMH, CML = ±20 kV/μs TYP.); (3)High isolation voltage (BV = 5 000 Vr.m.s.); (4)High-speed response (10 Mbps); (5)Pulse width distortion; (6)Open collector output; (7)Ordering number of tape product: PS9687L2-E3, E4: 1 000 pcs/reel ; (8)Safety standards; (9)UL approved: File No. E72422; (10)BSI approved: No. 8990/8991; (11)DIN EN60747-5-2 (VDE0884 Part2) approved: No.40008906 (Option).

Diagrams

ps9687 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PS9687L1
PS9687L1
Other

Data Sheet
Negotiable
PS9687L1-A
PS9687L1-A

PHOTOCOUPL HS DGTL OC OUT 8DIP
Data Sheet
Negotiable
PS9687L1-V-A
PS9687L1-V-A

PHOTOCOUPL HS DGTL OC OUT 8DIP
Data Sheet
Negotiable
PS9687L2
PS9687L2
Other

Data Sheet
Negotiable
PS9687L2-A
PS9687L2-A
CEL
High Speed Optocouplers 8PinDIP1CH Lng clear 8mm creepg Surf Mt
Data Sheet
Negotiable
PS9687L2-E3-A
PS9687L2-E3-A

PHOTOCOUPL HS DGTL OC OUT 8SM
Data Sheet
Negotiable
PS9687L2-V-A
PS9687L2-V-A

PHOTOCOUPL HS DGTL OC OUT 8SM
Data Sheet
Negotiable
PS9687L2-V-E3-A
PS9687L2-V-E3-A

PHOTOCOUPL HS DGTL OC OUT 8SM
Data Sheet
Negotiable
