Product Summary

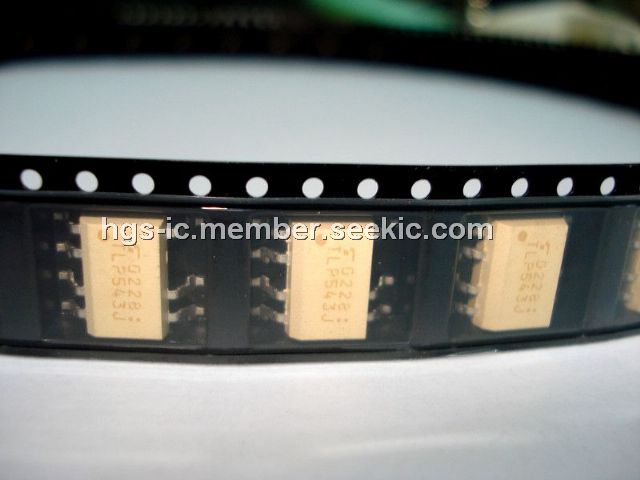

The TLP543J is a GaAs ired & photo-thyristor. It consists of a photo-thyristor optically coupled to a gallium aresenide infrared emitting diode in a seven lead plastic DIP package.

Parametrics

TLP543J absolute maximum ratings: (1)storage temperature range, Tstg: -55 to 150℃; (2)operating temperature range, Topr: -55 to 100℃; (3)lead soldering temperature, Tsold: 260℃; (4)total package power dissipation, PT: 250mW; (5)isolation voltage, BVS: 2500Vrms.

Features

TLP543J features: (1)peak off-state voltage: 600V min; (2)trigger LED current: 10mA max; (3)on-state current: 150mA max; (4)isolation voltage: 2500Vrms min; (5)UL recoginized.

Diagrams

TLP543J block diagram
