Product Summary

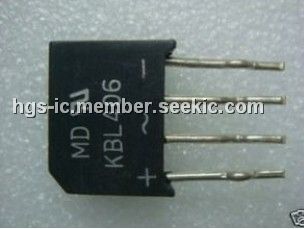

The KBL406 is a 4.0A in-line miniature single phase silicon bridge rectifier.
Parametrics
KBL406 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:600V; (2)Maximum RMS Voltage:420V; (3)Maximum DC Blocking Voltage:600V; (4)Maximum Average Forward Current:4.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):200A; (6)Typical thermal resistance:19℃/W; (7)Maximum Forward Voltage at 4.0A, per element:1.1V; (8)Maximum DC Reverse Current at TJ=25℃:10uA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.
Features
KBL406 features: (1)Plastic material has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)Ideal for printed circuit board; (4)Reliable low cost construction utilizing molded plastic technique; (5)Surge overload rating: 200 Amperes peak; (6)Pb free product are available: 99% Sn above can meet RoHS environment substance directive request.

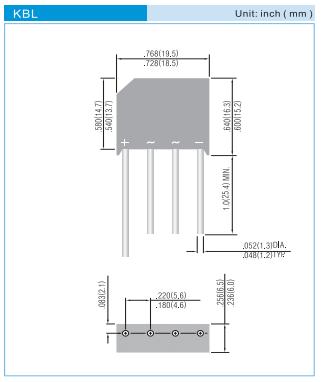

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KBL406 |
Taiwan Semiconductor |
Bridge Rectifiers 4.0 Amp 800 Volt 200 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||
|
KBL406-G |
|
RECTIFIER BRIDGE 4A 600V KBL |
Data Sheet |
|
|
||||||||||
 |
KBL406G |
GeneSiC Semiconductor |
Bridge Rectifiers 600V 4A Bridge Rectifier |
Data Sheet |
|
|
||||||||||
